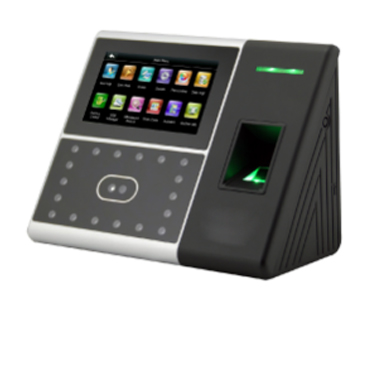

Time Attendance & Access Control
- Technical Info
- Description
| Display | 4.3" TFT Touch Screen |
| Face capacity | 3,000 (1:N) |
| Fingerprint capacity | 4,000 |
| ID Card capacity | 10,000 (optional) |
| Logs capacity | 100,000 |
| Communication | TCP/IP, USB Host |
| Standard Functions | Automatic Status Switch, Self-Service Query, Work Code, SMS, DST, T9 Input, 9 Digit User ID, Scheduled Bell, Photo ID, ADMS |
| Optional Functions | ID/MiFare Card, 3G, Wi-Fi, 2000mAH Backup Battery |
| Access Control Interfaces for | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Output |
| Optional functions | 2000mAh Backup Battery, ID Card, Mifare card, Wi-Fi, 3G |
| Power Supply | DC 12V 3A |
| Verification Speed | =1 sec |
| Operating Temperature | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimensions | 193.6×165.2×86 mm |
- Multi-languages
- High verification speed
- Advanced and user-friendly UI
- Chip encryption for firmware protection
- Optional built-in battery backup providing approximately 4 hours of continuous operation
- Easy to extend functions and customize client’s requirements
- One face template is registered for one user only
- Able to detect whether the face is an actual face or a photo, enhancing the security level of verification
