Time Attendance & Access Control
- Technical Info
- Description
| Fingerprint Templates | 5.000 (US10C-ID) |
| Transactions | 50.000 |
| Card Capacity | 10.000 (US10C-ID / US10C-R) |
| Barcode reader | 3 of 9 or 2 of 5 (US10C-B) |
| Magnetic stripe | Track II (US10C-M) |
| Platform | ZEM510 |
| CPU | 32bit ZK6001 Microprocessor 400MHz |
| Memory | 32M RAM, 256M Flash |
| Sensor | ZK Optical Sensor |
| LCD | TFT Screen 3 inch |
| LED Indicator | Red / Green |
| Oper. Temp | 0°-45°C |
| Oper. Humidity | 20%-80% |
| Power | 12V, DC 1.5A |
| Comm. Port | Ethernet, RS-485 |
| Pen drive | USB-host |
| Type | ZK Finger |
| Identification | <=2 seconds |
| Verification | <=1second |
| Type | Buttons keypad |
| Function Keys | 4 defined by user |
| Events Management | Up to 9.999 |
| Dimensions | 139,7 x 165,1 x 405,7 mm (L x W x D) |
| Weight | 1.35Kg |
| O.S | Linux |
| Applications | T & A |
| SDK | Standard SDK |

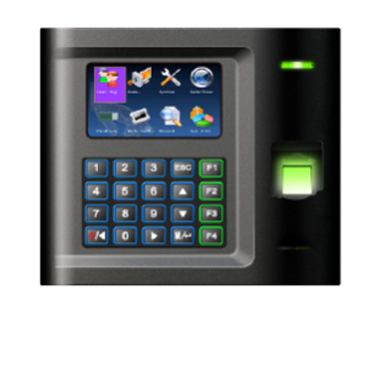

- Choice of Barcode, Mag Stripe, Proximity or Fingerprint in the same device
- 3” color TFT screen for display of graphics and icons. Managers can even leave SMS messages behind for employees reporting in/out of work
- Supports both hardwired TCP/IP and optional wireless connections. Standard RS-232 and USB host for data downloading.
- Rugged keypad with 4 additional function keys to customize
- Built-in scheduler and relay contact can even ring an external bell/alarm. The relay can also be connected to a door strike/lock.
- Supports up to 5,000 fi ngerprint templates or 10,000 cards/badges
- All models support up to 100,000 transactions
- US10 Series readers optionally add internal Wi-Fi, HID Prox, HID iClass and Mifare modules
- Free SDK is available for software developers who wish to integrate ZK readers with any application which requires verifying people
