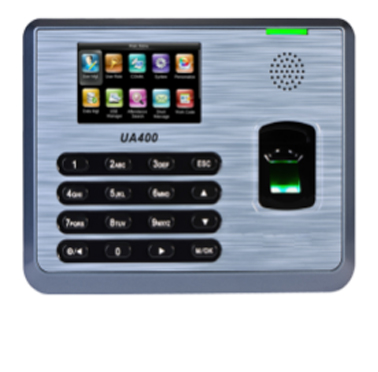

Time Attendance & Access Control
- Technical Info
- Description
| Fingerprint Capacity | 3000 (1:N) |
| ID Card Capacity | 10,000 (Optional) |
| Record Capacity | 100,000 |
| Display | 3-inch Screen |
| Communication | RS232/485, TCP/IP, USB-client |
| Standard Functions | SMS, Workcode, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, ADMS |
| Optional Functions | ID/Mifare/HID, 9 digit user ID, Webserver, Photo ID |
| Software | BioTime |
| Power Supply | DC 5V 0.8A |
| Verification Speed | =0.5 Sec. |
| Operating Temp. | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Dimension | 180 × 135 × 37 mm (Length × Width × Thickness) |
| Gross Weight | 0.70 kg |
- Intuitive and stunning UI designed with the most popular and internationalized factor.
- Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
- Faster matching speed: less than 1 second.
- Easy to extend functions and customize customers’ demand.
- Support user validity settings.
- Support data backup and retrieve.
- Support advanced Workcode consisted of letters and numbers.
- Support chip encryption for firmware protection.
- Support more flexible menu configuration: double line text display.
- Support external printer for attendance records output (Optional).
