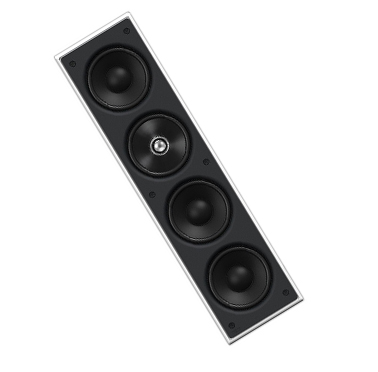

In-Wall Speakers

NOMINAL IMPEDANCE 4 Ω
SENSITIVITY 89dB (2.83V/ 1m)
FREQUENCY RESPONSE 55Hz - 28kHz (±6dB) open backed
CROSSOVER FREQUENCIES 2.2kHz
DRIVE UNITS LF: 3 x 100mm (4 in.) MF: 100mm (4 in.) HF: 19mm (0.75 in.) Uni-Q
AMPLIFIER REQUIREMENTS 10 - 150W
PRODUCT EXTERNAL DIMENSIONS H x W x D : 490 x 128 x 81 mm (19.29 x 5.04 x 3.19 in.)
CUT-OUT DIMENSIONS H x W : 476 x 114mm (18.74 x 4.49 in.)
MOUNTING DEPTH FROM SURFACE 76mm (3.0 in.)
NET WEIGHT 3 kg (6.61 lbs)
UNIT MEASUREMENT Piece

Featuring sophisticated ’sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Series range gives you tremendous freedom to position the speakers where you please.
