In-Wall Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 8 Ω |
| SENSITIVITY | 90dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 45Hz - 20kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 2.8kHz |
| DRIVE UNITS | LF: 200mm (8in.) HF: 25mm (1in.) |
| AMPLIFIER POWER | 10 - 125W |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 369 x 273 x 102 mm (14.53 x 10.75 x 4.02 in.) |
| CUT-OUT DIMENSIONS | H x W : 334 x 238 mm (13.15 x 9.37 in.) |
| MOUNTING DEPTH FROM SURFACE | 95.9mm (3.78in.) |
| OPTIONAL ROUGH IN FRAME | RIF200L |
| OPTIONAL REAR ENCLOSURE | RNC200L |
| NET WEIGHT | 2.0kg (4.43lbs.) |
| UNIT MEASUREMENT | Piece |

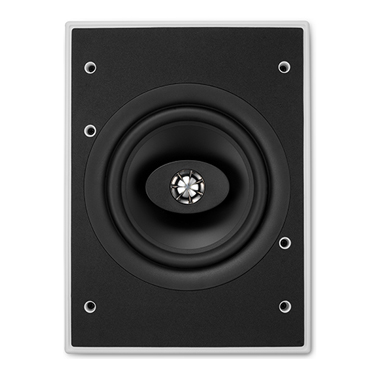

Featuring the unique asymmetrical tweeter island, this configuration reduces high frequency diffraction and aligns the off-axis power response of the tweeter and woofer to make the speaker almost as placement friendly as Uni-Q. Combining impeccable sound quality with the elegant ultra-thin bezel (UTB), the Ci C Series range is part of how to "Hide your speakers, not your sound."
