In-Wall Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 8 Ω |
| SENSITIVITY | 89dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 52Hz - 20kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 3.4kHz |
| DRIVE UNITS | LF: 160mm (6.5in.) HF: 19mm (0.75in.) |
| AMPLIFIER POWER | 10 - 100W |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 223 x 223 x 90.5 mm (8.78 x 8.78 x 3.56 in.) |
| CUT-OUT DIMENSIONS | H x W : 194 x 194 mm (7.64 x 7.64 in.) |
| MOUNTING DEPTH FROM SURFACE | 84.5mm (3.33in.) |
| OPTIONAL ROUGH IN FRAME | RIF160S |
| OPTIONAL REAR ENCLOSURE | RNC160S |
| NET WEIGHT | 1.70kg (3.74lbs.) |
| UNIT MEASUREMENT | Piece |

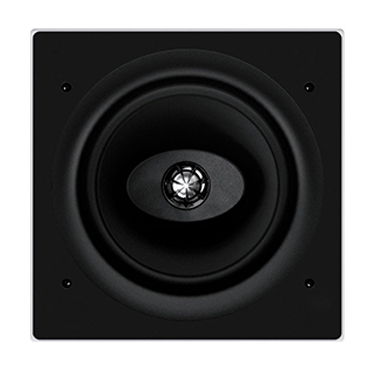

Featuring the unique asymmetrical tweeter island, this configuration reduces high frequency diffraction and aligns the off-axis power response of the tweeter and woofer to make the speaker almost as placement friendly as Uni-Q. Combining impeccable sound quality with the elegant ultra-thin bezel (UTB), the Ci C Series range is part of how to "Hide your speakers, not your sound."
