| NOMINAL IMPEDANCE | 8 Ω |
| SENSITIVITY | 87dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 52Hz - 20kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 4kHz |
| DRIVE UNITS | LF: 130mm (5.25in.) HF: 19mm (0.75in.) |
| AMPLIFIER POWER | 10 - 80W |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 184 x 184 x 83 mm (7.24 x 7.24 x 3.3 in.) |
| CUT-OUT DIMENSIONS | H x W : 158 x 158 mm (6.22 x 6.22 in.) |
| MOUNTING DEPTH FROM SURFACE | 77.1mm (3.03in.) |
| OPTIONAL ROUGH IN FRAME | RIF130S |
| OPTIONAL REAR ENCLOSURE | RNC130S |
| NET WEIGHT | 1.35kg (3.0lbs.) |
| UNIT MEASUREMENT | Piece |

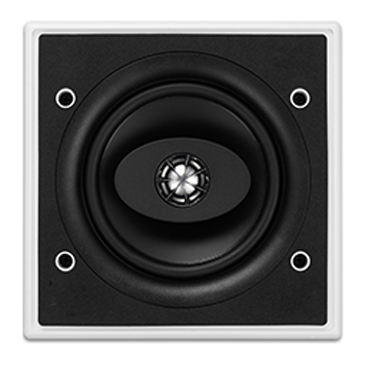

Featuring the unique asymmetrical tweeter island, this configuration reduces high frequency diffraction and aligns the off-axis power response of the tweeter and woofer to make the speaker almost as placement friendly as Uni-Q. Combining impeccable sound quality with the elegant ultra-thin bezel (UTB), the Ci C Series range is part of how to "Hide your speakers, not your sound."
