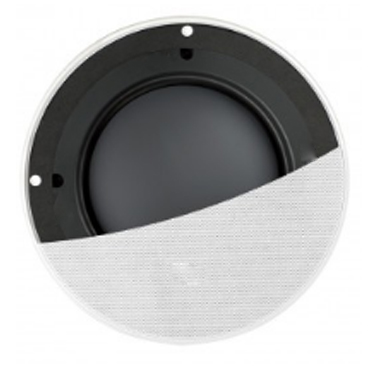

In-Ceiling Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 2Ω x 8Ω - Stereo Mode 16Ω - Mono Mode |
| SENSITIVITY | 87dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 42Hz-120Hz - Passive 32Hz-120Hz - With Kasa500 |
| DRIVE UNITS | LF: 200mm (8 in.) |
| RECOMMENDED AMPLIFIER POWER | 10-125W - Passive KASA500 - With Kasa500 |
| PRODUCT EXTERNAL DIMENSIONS | Diamater: 290 mm (11.42 in.) Depth: 63mm (2.48 in.) |
| CUT-OUT DIMENSIONS | H x W: 240mm (9.45 in.) |
| MOUNTING DEPTH FROM SURFACE | 59mm (2.32 in.) |
| OPTIONAL ROUGH IN FRAME | RIF200R |
| OPTIONAL REAR ENCLOSURE | RNC200R |
| NET WEIGHT | 1.7kg (3.75 lbs) |
| UNIT MEASUREMENT | Piece |
For the ultimate in Extreme Home Theatre, the formidable new Ci R Series has the jaw-dropping acoustic capabilities of the classic floorstander it's named after, with all the drama and emotional intensity of full theatre sound quality.
The Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.
With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround.
