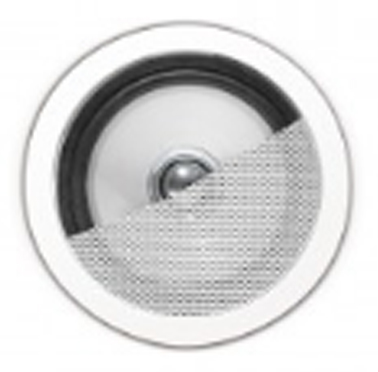

In-Ceiling Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY | 88dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 80 - 27kHz (±6dB) 2pi/open-backed 110 - 27kHz (±6dB) with back can/rear enclosure |
| CROSSOVER FREQUENCIES | 3kHz |
| DRIVE UNITS | LF: 100mm HF: 19mm |
| RECOMMENDED AMPLIFIER POWER | 10 - 50W |
| FEATURES | Uni-Q Array, Removeable Plastic Back Can |
| PRODUCT EXTERNAL DIMENSIONS | Diameter / Width / Depth : 127mm (5in.) / - / 148mm (5.83in.) |
| CUT-OUT DIMENSIONS | Diameter : 118mm (4.65in.) |
| MOUNTING DEPTH FROM SURFACE | Product only / With back can : 100mm (3.94in.) / 145mm (5.71in.) |
| OPTIONAL ROUGH IN FRAME | RIF100R |
| OPTIONAL REAR ENCLOSURE | RNC100R |
| UNIT MEASUREMENT | Piece |
The popular Soundlight Series is yet another major innovation. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance.
