| Supply voltage | 12 V DC |
| Operating temperature range | -10…+55 °C |
| Standby mode current consumption | 40 mA |
| Max. current consumption | 75 mA |
| Weight | 110 g |
| Maximum humidity | 93±3% |
| Dimensions | 80 x 127 x 24 mm |
| Environmental class according to EN50130-5 | II |
| Relay output rating (resistive load) | 2 A / 24 V DC |

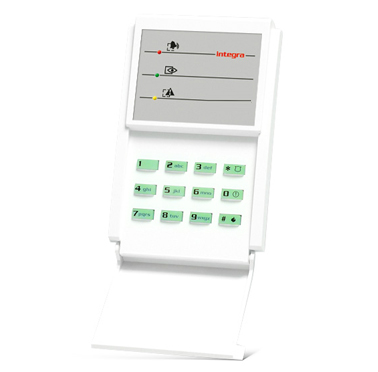

The partition keypad is designed for easy operation of a single partition in the INTEGRA system, perfectly fit for systems where single partitions constitute functionally separated subsystems.
