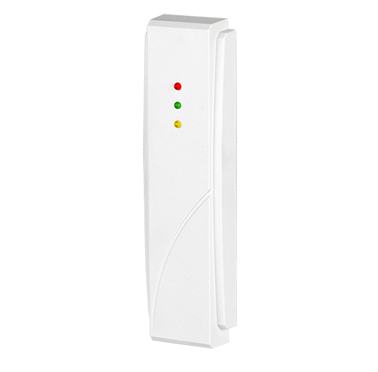

Proximity card arm/disarm device

Environmental class II
Supply voltage 12 V DC
Average current consumption (standby mode) (±10%) 65 mA
Enclosure dimensions 127 x 35 x 21 mm
Operating temperature range -10…+55 °C
Weight 140 g

The module is used for partition control with proximity cards. This way, operation of the alarm system does not require a password: a perfect solution for a system used by children or the elderly.

  •  Partitions arming and disarming with proximity cards or tags
  •  Support for 125 kHz passive transponders
  •  3 programmable partition arm modes
  •  3 LEDs for system state indication and user interface display
  •  Built-in buzzer
  •  Compatible with INTEGRA and VERSA panels (connected directly to the bus)
