LCD keypad for INTEGRA control panels

  •  Technical Info
  •  Description

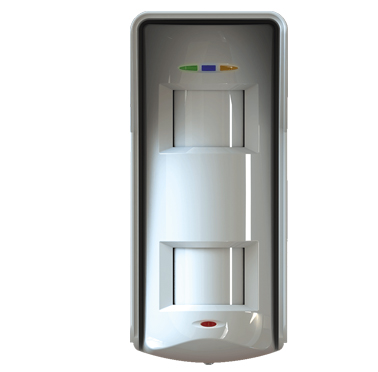

Two-way wireless technology Yes
Blue Wave Technology Yes
Dual element pyroelectric sensor Yes
Tamper protection Front, rear and external tamper switch
Intergrated walk test buzzer Yes
Separate LED indication Top: Microwave, PIR 1 and alarm Bottom: PIR 2
Signal Strength Indicators (SSI) Yes
Anti-Sway Analytics Yes
Weatherproof IP55 rated
Adjustable sensitivity High or low range
Casing 3mm polycarbonate 0.4mm HDPE in lens area
Maximum range 12 metres
Volumetric coverage 90° coverage
Dual technology Yes
Animal immunity Up to 35kg 1 - 1.5m (mounting height of detector)
Battery type 2x 3V 4700mAh Lithium battery packs (BATT-ES1)
Battery life Up to 3 years
Warranty 2 years
Security Grade Grade 2
  •  Two-way wireless
  •  Tri-signal detection logic
  •  10m volumetric coverage
  •  3 Microwave frequency bands
  •  Built-in walk test buzzer
  •  Heavy duty ultraviolet filter
  •  Automatic temperature compensation
  •  One-Push-To-Learn button
  •  Weatherproof sealed optics
  •  Optional heavy duty wall bracket
