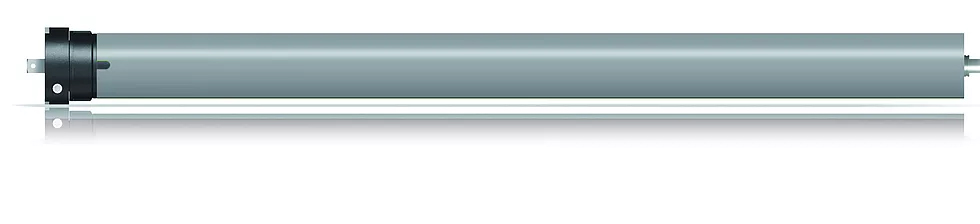

Super silent tubular motor for Roller & Roman blinds 24.5 kg capacity

TECHNICAL SPECIFICATIONS

• Super Silent 9dB less than standard
• Integrated Radio Control
• Built in transformer
• SASO compliant version

Electrical Characteristics

• Input : 230 V DC
• Current : 0.53 A
• Power: 144 W

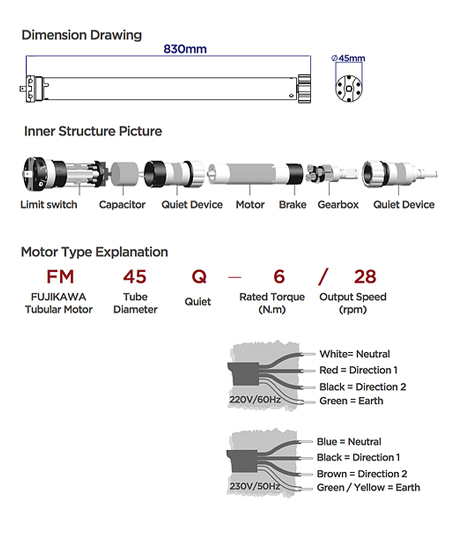

Dimensions

• Diameter : 45 mm
• Length : 830 mm

Mechanical Characteristics

• Torque : 6 Nm
• Speed : 28 rpm
• Maximum Load Capacity: 24 kg

Additional Details

• Overheat Protection : 0-500
• Weight : 2.95 kg
• Radio Frequency Technology : RTS-QUIET
• Protection Standard : IP44
