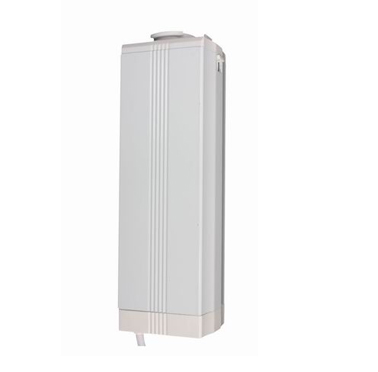

Curtain Motor
| Technology parameter |
| Model |
Voltage |
Frequency |
Power |
Torque |
Speed |
Line speed |
Insulation class |
Protection class |
| KF55-30 |
230V/120V |
50Hz/60Hz |
30W |
0.8Nm |
88.6/106.3rpm |
12/14cm/S |
I.cl.E |
IP41 |
| KF55-45 |
230V/120V |
50Hz/60Hz |
45W |
1.2Nm |
88.6/106.3rpm |
12/14cm/S |
I.cl.E |
IP41 |
- Automatic electronic trip positioning, without manual setting.
- Fashion appearance: adopting one time molding and latest superficial disposal technology.
- Low voice: motor and the track system make low voice, runs stable.
- Easy to control: built-in the radio, INF, wire control and intelligent control center port.
- Big torque: use the big torque AC motor, MAX pull power is 8KG, can be used for 35KG/10M curtain.
