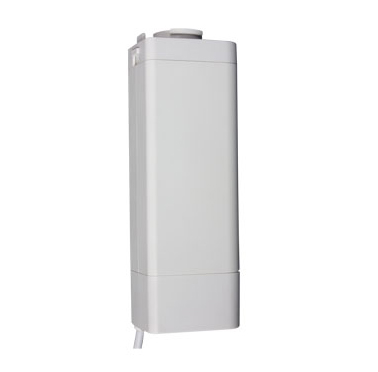

Curtain Motor
| Technology parameter |
| Model |
Voltage |
Frequency |
Power |
Torque |
Speed |
Line speed |
Insulation class |
Protection class |
| KA50A |
230V/120V |
50Hz/60Hz |
50W |
0.4Nm |
160/200rpm |
0.2/0.4m/S |
I.cl.E |
IP41 |
| KA50C |
230V/120V |
50Hz/60Hz |
50W |
0.4Nm |
160/200rpm |
0.2/0.4m/S |
I.cl.E |
IP41 |
| KA50A-1 |
230V/120V |
50Hz/60Hz |
50W |
0.4Nm |
160/200rpm |
0.2/0.4m/S |
I.cl.E |
IP41 |
- Built-in clutch, the curtain can be controlled by remote controller or manual.
- Saftey and credibility, built-in thermal, overload, overtime protection system.
- AC power input, need not the transformer. Can used for 30KG/10M curtain.
- Easy to installion, and automatic limit sensor system.
- Quiet, stable, sealed lubricate design.
- Without soft stop function.
- The control method is different from KA50A, others are the same as KA50A.
