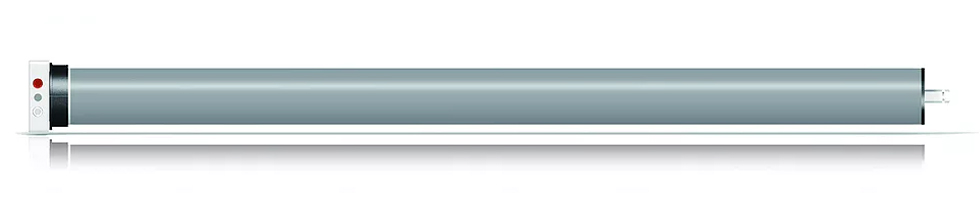

Battery powered tubular motor for Roller & Roman blinds 5.6 kg capacity

TECHNICAL SPECIFICATIONS

Dimensions

• Diameter : 25 mm
• Length : 440 mm

Electrical Characteristics

• Input : 8 V DC
• Current : 0.53 A
• Power: 4.67 W

Mechanical Characteristic??

• Torque : 1.1 Nm
• Speed : 40 rpm
• Maximum Load Capacity: 5.6 kg

Additional Details

• Overheat Protection : 4 minutes
• Weight : ---
• Radio Frequency Technology : RTS-DC
• Protection Standard :IP44
