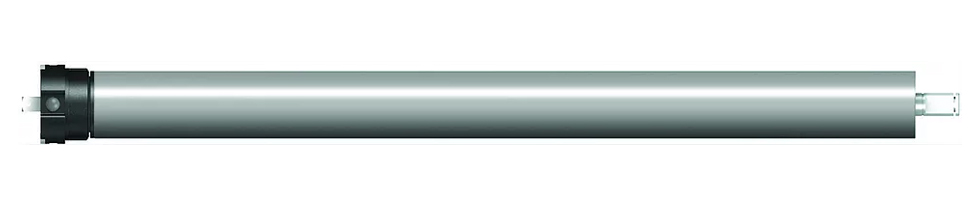

Heavy-duty tubular motor for Roller & Roman blinds 40 kg capacity

TECHNICAL SPECIFICATIONS

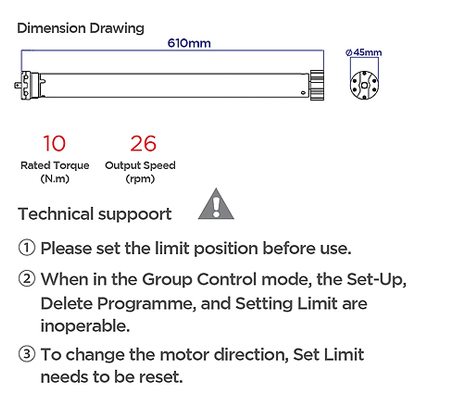

Dimensions

• Diameter : 45 mm
• Length : 610 mm

Electrical Characteristics

• Input : 230 V DC
• Current : 0.69 A
• Power: 161 W

Mechanical Characteristic

• Torque : 10 Nm
• Speed : 26 rpm
• Maximum Load Capacity: 40 kg

Additional Details

• Overheat Protection :0-500
• Weight : 2.36 kg
• Radio Frequency Technology : RTS
• Protection Standard : IP44
