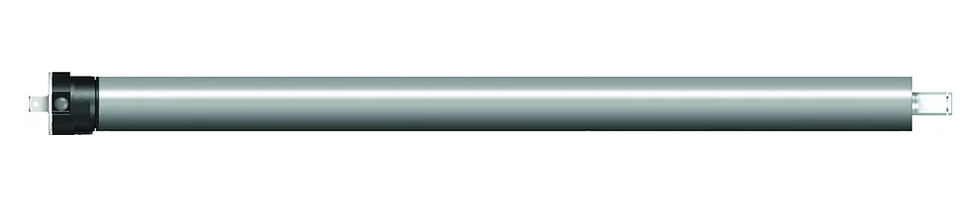

Standard tubular motor for Roller & Roman blinds 24.5 kg capacity

TECHNICAL SPECIFICATIONS

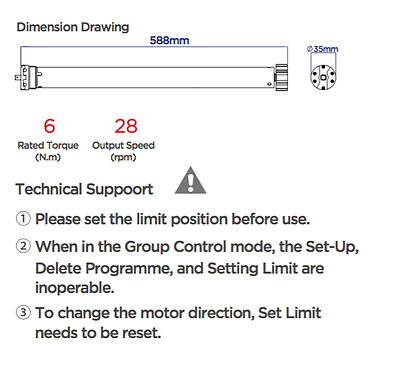

Dimensions

• Diameter : 35 mm
• Length : 588 mm

Electrical Characteristics

• Input :230 V DC
• Current : 0.63 A
• Power:144 W

Mechanical Characteristic

• Torque : 6 Nm
• Speed : 28 rpm
• Maximum Load Capacity: 24 kg

Additional Details

• Overheat Protection :0-500
• Weight :1.43 kg
• Radio Frequency Technology :RTS
• Protection Standard : IP44
