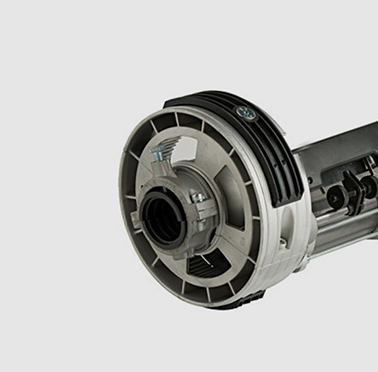

H4: operator for winding shutters

Ideal for automating all types of winding shutter, with maximum performance and no need to change the fixture. Lifting force up to 180 kg with the possibility of applying a second motor to increase its effectiveness. Optional electro-block H001 for reversible versions (H41230120 e H4123018

Total versatility

All gearmotors in the H series are suitable for Ø48 mm and Ø60 mm poles, in addition to Ø200 or Ø220 mm springs. It is sufficient to use the accessories supplied as standard to complete installation.

Complies with applicable safety regulations

The control panel makes it possible to create installations in accordance with current technical standards and comes complete with radio decoding for remote control.

The 230 V electronics

 self-learning of transmitter's radio code to facilitate radio command activation operations

 low voltage accessories connection for setting up the system in compliance with current technical safety regulations

 clean contact commands

 "no self-holding" command which requires constant pressure of the control button for the entire duration of the shutter's cycle

 optional electro-block H001 for reversible versions (H41230120 e H41230180)
