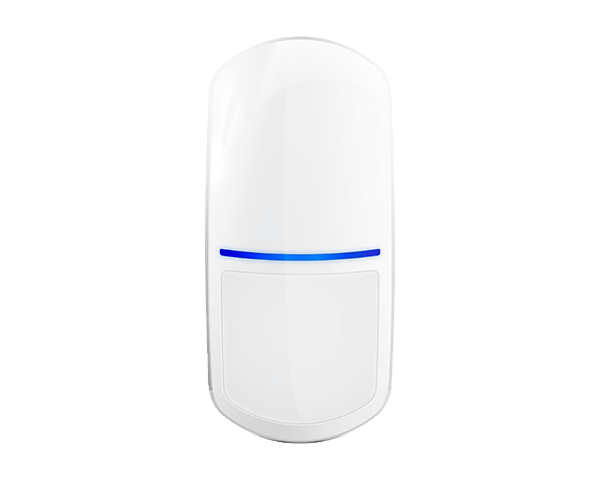

SLIM-PIR
PIR motion detector
- Supervision of motion detection and supply voltage circuit
- Tamper protection against opening of enclosure
- Motion detection using passive infrared (PIR) sensor
- LED indicator remote enable / disable
- Wide-angle lens, designed specifically for the SLIM LINE detectors
Specification
 |
|
| Supply voltage | 12V DC |
| Detected target velocity | 0,3 - 3 m/s |
| Recommended mounting height | 2,4 m |
| Operating temperature range | -10°C - +55°C |
| Standby mode current consumption | 8 mA |
| Max. current consumption | 23 mA |
| Weight | 100 g |
| Maximum humidity | 93±3% |
| Dimensions | 62 x 137 x 42 mm |
| Alarm signaling time | 2 s |
| Complied with standards | EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5 |
| EOL resistors | 2 x 1,1 kΩ |
| Detection area | 15 m x 20 m, 90° (montaż na 2,4 m) |
