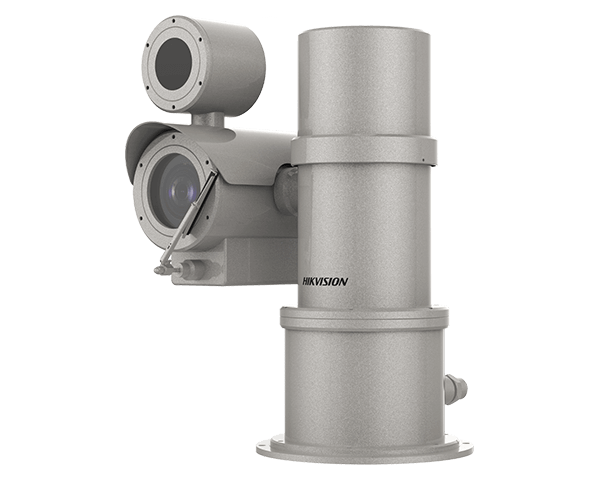

DS-2DY9236I-CWX
9-inch 2MP 36X DarkFighter Explosion Network Position system
- Excellent low-light performance via DarkFighter technology
- High quality imaging with 2 MP resolution
- 36x optical zoom provides close up views over expansive areas
- Corrosion resistant to NEMA4X standard
Specification
 |
|
| Camera White Balance | Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Lens FOV | Horizontal field of view: 59.8° to 2.0° (wide-tele),Vertical field of view: 35° to 1.1° (wide-tele),Diagonal field of view: 66.2° to 2.3° (wide-tele) |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F4.5 |
| Focal Length | 5.7 mm to 205 mm, 36× optical zoom |
| Image Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Network Network Storage | Built-in memory card slot, support Micro SD / SDHC / SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS) |
| Protocols | IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 20 channels |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Alarm Linkage | Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc. |
| Compression StandardH.264+ | Support |
| H.265+ | Support |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| General Material | SUS316L |
| Dimensions | 445 mm × 245 mm × 510 mm (17.52" × 9.65" × 20.08"), Approx. 36.7 kg (80.91 lb) |
| Protection Level | IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power | 100 VAC to 240 VAC,Max.: 100 W (Max. 15 W for IR) |
| Working Temperature | -40°C to 60°C (-40°F to 140°F) |
