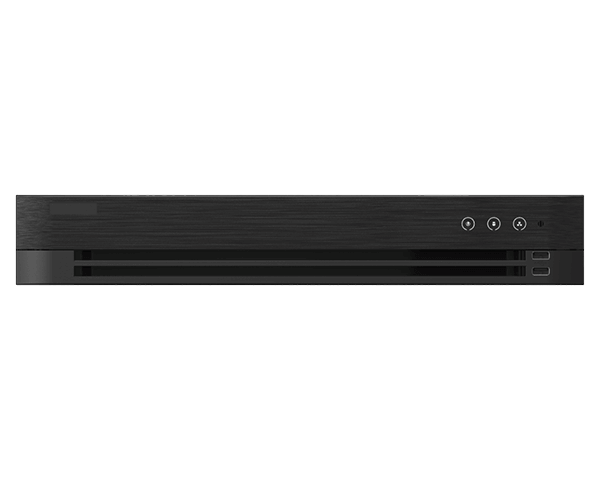

DS-7708NI-Q4/8P
8-ch 1.5U 8 PoE 4K NVR
- Up to 4K high-definition live view, storage and playback
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 8 channel IP cameras can be connected
- Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
- 4 HDDs for continuous video recording
Specification
 |
|
| Video and Audio IP Video Input | 8-ch, Up to 8 MP resolution |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, ,1920 × 1080p/60Hz, ,1600 × 1200/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Decoding Format | H.265+, H.265, H.264+, H.264 |
| Decoding Capability | 4-ch @ 1080p |
| Synchronous playback | 8-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 8-ch |
| Power | ≤ 80W |
| Standard | IEEE 802.3 af/at |
| RAID RAID Type | No |
| Auxiliary Interface SATA | 4 |
| Capacity | Up to 6 TB capacity for each disk |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm In / Out | 16/4 (16/8 optional) |
| General Power Supply | 100 to 240 VAC or ≤ 300 W |
| Consumption | ≤ 15 W (without enabling PoE) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 % to 90 % |
| Dimension (W × D × H) | 440 × 393 × 75 mm (17.3" × 15.5" × 3.0") |
| Weight | ≤ 5 kg (11 lb) |
