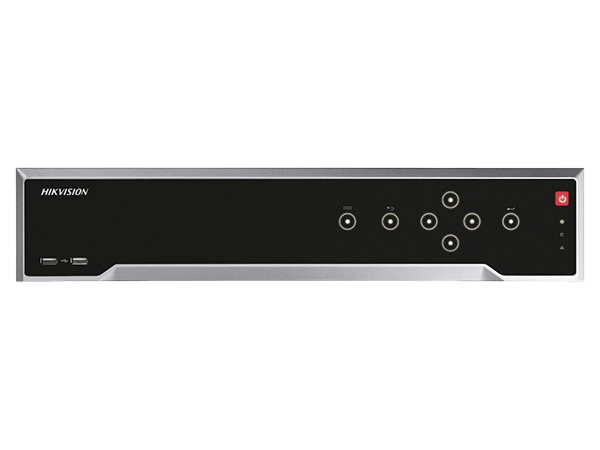

DS-7716NXI-I4/16P/4S
16-ch 1.5U 16 PoE AcuSense 4K NVR
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 16 channel IP cameras can be connected
- Up to 12 MP high-definition live view, storage and playback
- Up to 12-ch @ 1080p decoding capacity
- Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
Specification
 |
|
| Video and Audio IP Video Input | 16-ch |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI |
| VGA Output | HDMI,VGA |
| Incoming Bandwidth | 256 Mbps / 200 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Decoding Format | H.265+, H.265, H.264+, H.264 |
| Decoding Capability | 12-ch @ 1080p |
| Synchronous playback | 16-ch |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF |
| Network Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200W |
| Standard | IEEE 802.3 af/at |
| RAID RAID Type | No |
| Auxiliary Interface SATA | 4 |
| ESATA | 1 eSATA interface |
| Capacity | Up to 8 TB capacity for each HDD |
| Serial Interface | RS-485 (half-duplex), RS-232, Keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In / Out | 16/4 |
| General Power Supply | 100 to 240 VAC, ≤ 300 W |
| Consumption | ≤ 30 W |
| Working Temperature | -10° C to +55° C (+14° F to +131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
| Weight | ≤ 5 kg (11 lb) |
