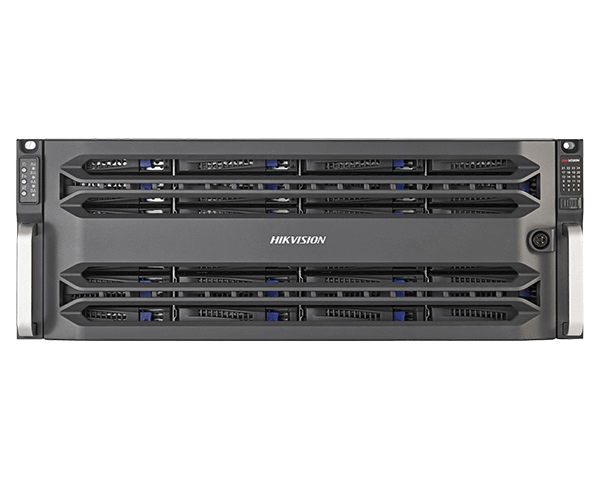

DS-A71024R
24-slot economic Storage
- HDD detection and repair / RAID optimization
- Economical and stable hardware platform
- Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
- Advanced data protection (synchronous backup of key information in system disks)
- Energy efficient and user-friendly UI
Specification
 |
|
| Network Protocol | iSCSI, RTSP, ONVIF, PSIA |
| External interface USB | 4 |
| Data network interface | 2, 1000M Ethernet interface (4 × GbE or 2 × 10GbE is extendable) |
| MiniSAS interface | Supported |
| COM | 1 |
| Management network interface | 1, 1000M Ethernet interface |
| Storage HDD slot | 24 |
| Interface / capacity | SATA / 1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB |
| Hot-swapping | Supported |
| HDD support | Single, RAID(Enterprise Hard Disk) |
| RAID | RAID 0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare |
| Performance Direct Streaming Mode: video (2 Mbps) + picture | 320-ch recording + playback |
| IPSAN Mode | 180-ch recording + playback |
| Video performance | 320 |
| Picture performance | 320 |
| Hardware Structure | Server Structure |
| Processor | 64-bit multi-core processor |
| Cache | 4 GB (extendable to 64 GB) |
| Storage Management Disk management | Disk inspection alarm and repair |
| Logical volume management | ISCSI volume, video volume management |
| Recording Management Recording mode | Timing recording, manual recording, dual-stream recording, alarm recording |
| Video protection | Lock key video, N+1 service protection, ANR, video loss detection and alarm |
| Searching mode | Search by time and event |
| Downloading mode | Quick download, batch download, download by segment, download by merging |
| HDD HDD Model | Hikvision,HK7216AH,16T; Hikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK726TAH,6T; Hikvision,HK724TAH,4T; Seagate,ST16000NM001G,16T; Seagate,ST14000NM001G,14T; Seagate,ST12000NM001G,12T; Seagate,ST10000NM001G,10T; Seagate,ST8000NM000A,8T; Seagate,ST6000NM021A,6T; Seagate,ST4000NM000A,4T; Seagate,ST4000NM002A,4T; Seagate,ST2000NM001A,2T; WD,HUS728T8TALE6L4,8T; WD,HUS726T6TALE6L4,6T; WD,HUS726T4TALA6L4,4T; |
| General Power supply | Redundant |
| Chassis | 4U (19-inch height) |
| Consumption (with HDDs) | Working: ≤ 479(1633 BTU with 24 HDDs);Rated: ≤ 875 W |
| Environment temperature | Working: +5 °C to +40 °C (41 °F to 104 °F);Storing: -40 °C to +55 °C (-104 °F to +131 °F) |
| Humidity | Working: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing / frozen) |
| Dimensions (W × D × H) | 484 x 684 x 174 mm (19.1 x 26.9 x 6.9 in) |
