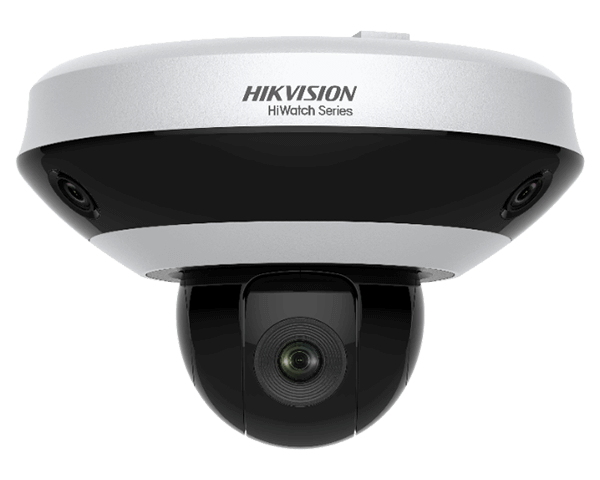

HWP-P332ZI-DE3
HIWATCH Mini PanoVu PTZ
- One 2 MP camera for close-up view with 4x zoom ability
- Three 2 MP cameras face different directions to cover larger areas
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to DWDR technology
- Good night-time performance with up to 10 m IR
Specification
 |
|
| Camera Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.01 Lux @(F2.0, AGC ON),0 Lux with IR |
| Shutter Time | 50 Hz: 1/25 s to 1/30,000 s,60 Hz: 1/30 s to 1/30,000 s |
| Digital Zoom | 8× |
| Day & Night | IR Cut Filter |
| Lens FOV | Horizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to 31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele) |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Zoom Speed | Approx.5.4 s (optical, wide - tele) |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Aperture | F2.0 to F2.4 |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 4 × 4 channels |
| User / Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network Storage | Built-in memory card slot, support Micro SD / SDHC / SDXC, up to 256 GB |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Image Main Stream | Main stream:,50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| General Power | 12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4, Max.24 W (Max. 6 W for IR) |
| Dimension | Φ 183 mm × 133 mm (Φ 7.20" × 5.24") |
| Operating Condition | -10°C to 50°C (14°F to 122°F) |
| Material | PC + ABS ∓ Aluminum alloy |
