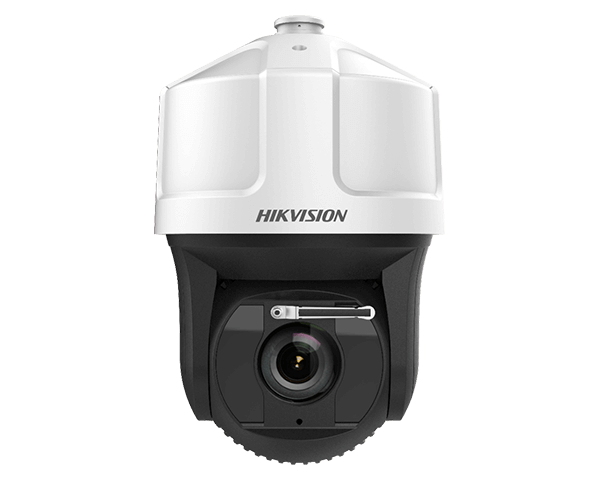

IDS-2VS435-F840-EY(T5)
8-inch 4 MP 40X DarkFighter Traffic Network Speed Dome
- 400 m IR distance
- Efficient H.265+/H.265 compression technology
- Excellent low-light performance with DarkFighter technology
- High quality imaging with 4 MP resolution
- Water and dust resistant (IP67)
Specification
 |
|
| Camera Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Shutter Time | 1/1 s to 1/30000 s |
| Day & Night | IR cut filter |
| Zoom | 40 × optical, 16 × digital |
| Lens Zoom Speed | Approx. 5.4 s |
| Focal Length | 6 to 240 mm |
| FOV | Horizontal field of view: 56.6° to 1.8°, vertical field of view: 33.7° to 1.0°, diagonal field of view: 63.4° to 2.0° |
| Focus | Auto,semi-auto,manual |
| Aperture | Max. F1.2 |
| Video Main-Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile, Main profile, High profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC) |
| Network Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X, QoS,IPv4/IPv6,UDP,Bonjour |
| Simultaneous Live View | Up to 20 channels |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark,IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3,host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Image Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day / Night Switch | Day, night, auto, schedule |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| General Power | 24 VDC ± 25%, max. 62 W |
| Dimension | Ø266.6 mm × 410 mm (Ø10.50" × 16.14") |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Wiper | Yes |
