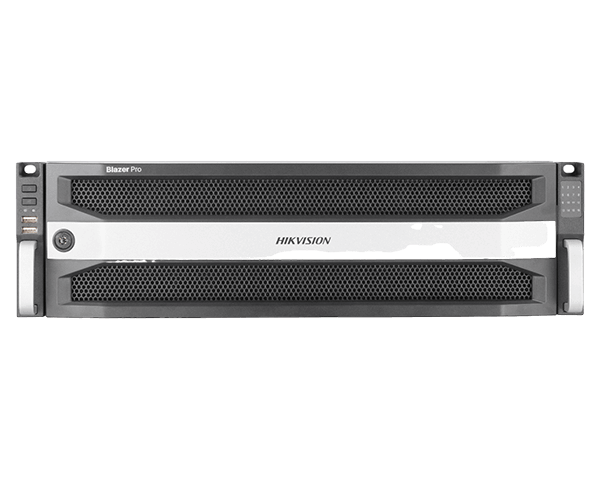

iVMS-Blazer Pro/128/16H
128-ch Blazer Pro
- High reliability, dual board, redundant power supply, RAID
- Blazer Pro combines VMS, server, storage and is delivered with a default license of 128 channels
- Operating system: embedded Linux, with up to 16-ch synchronous playback
- Easy to use: all-in-one, pre-installed OS and VMS, flat UI design
- Easy to extend: extendable storage and license
Specification
 |
|
| Server Board CPU | Intel®, Xeon®, Quad-Core (64-bit) E3-1225 V5 CPU @, 3.30GHz |
| Memory | 4 × DDR4 slots, 8GB ECC + UDIMM memory (extendable, up to 64 GB) |
| Operating system | Microsoft®, Windows 10 (pre-installed with HikCentral, V1.1), Optional:Microsoft®, Windows Server 2012 R2 (preinstalled,with HikCentral V1.1) |
| System disk | Industrial-level SSD with 128 GB capacity |
| HDD Slot | 4 × SATA interfaces, 2.5-inch HDDs are connectable |
| HDD for HikCentral | 1 × 2.5-inch HDD of 1 TB are delivered with device, Expandable to up to four 2.5-inch HDDs |
| Audio Input | 1, RCA (2.0 Vp-p, 1KΩ) |
| Audio Output | 1, RCA (2.0 Vp-p, 1KΩ) |
| Network Interface | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet,interfaces, independent IP address by default, |
| Incoming | 500 Mbps |
| Outgoing | 400 Mbps |
| Default License | License of max. 128 cameras |
| Maximum License | Expandable to License of up to 1,024 cameras |
| Number of Mobile Clients | Maximum 100 |
| Number of Connected Encoding Devices | Maximum 256 |
| Number of Connected Cameras | Maximum 256 |
| Number of Alarm Inputs | Maximum 256 |
| Number of Alarm Outputs | Maximum 256 |
| Number of ANPR Cameras | Maximum 20 |
| Number of Area Hierarchies | Maximum 5 |
| Number of Cameras per Area | Maximum 64 |
| Number of Alarm Inputs per Area | Maximum 64 |
| Number of Alarm Outputs per Area | Maximum 64 |
| Number of Maps | Maximum 1,024 |
| Resolution of Map | Maximum 1,024 |
| Resolution of Map | Maximum 1920 × 1080 |
| Number of Map Hierarchies | Maximum 6 |
| Number of Hot Regions per Map | Maximum 64 |
| Number of Camera Hot Spots per Map | Maximum 128 |
| Number of Alarm Input Hot Spots per Map | Maximum 128 |
| Number of Alarm Output Hot Spots per Map | Maximum 128 |
| Storage Board CPU | Intel® Core™ I3-6100 |
| Network Camera Video Input | 128-ch |
| Incoming / Outgoing Bandwidth | 576 / 512 Mbps |
| HDMI Output | 2-ch (independent output),4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 ×,1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 ×,1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 ×,720)/60Hz, XGA (1024 × 768) /60Hz |
| VGA Output | 1-ch,1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz,,SXGA (1280 × 1024)/60Hz, 720p (1280 × 720) /60Hz, XGA,(1024 × 768)/60Hz |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1KΩ) |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 1KΩ) |
| Video Decoding Format | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision network camera only) |
| Audio Decoding Format | G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2 |
| Live View Window Division | 1/4/6/8/9/16/25/32/36/64-window |
| Recording Resolution | 12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | Maximum 16-ch |
| Capacity | 1TB/2TB/3TB/4TB/5TB/6TB/8TB |
| RAID | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Support global hot spare disk |
| General Power Supply | Two power supply interfaces. 100 to 240 VAC, 550 W |
| Working Temperature | 0ºC to +50ºC (32ºF to 122ºF) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Dimensions (W × D × H) | 487 mm × 560 mm × 133 mm (19.2" × 22.0" × 5.2") |
| Fan | Redundant dual-ball bearing fan. Hot swapping and smart speed adjusting |
| Consumption(without HDD) | ≤ 300 W |
| Temperature Sensor | Supported (detecting temperature inside the chassis and controlling the fan speed) |
| Storage Temperature | −10º C to +70º C (14º F to 158º F) |
| Storage Humidity | 5% to 90% RH (no freezing and no condensation |
| Guide Rail5 | External guide rail for installing device into a rack |
