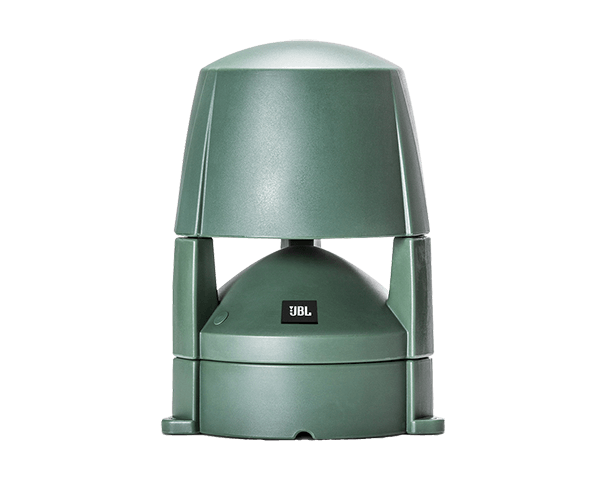

JBL Control 85M
Mushroom Landscape Speaker
- Fully isolated center chamber for wiring protection
- High fidelity sound character with broad frequency range of 55Hz - 18kHz
- Tough polyethylene highly weather resistant enclosure
- 5¼” highly weather-resistant driver
- ¾” soft-dome highly weather-resistant tweeter
Specification
 |
|
| Quick Details Frequency Range (-10dB) | 55 Hz – 18 kHz |
| Transformer Taps | 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W |
| Frequency Response (±3 dB) | 65Hz - 16 kHz |
| Power Rating | 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage | 23.3 V |
| Sensitivity | 86 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Coverage Angle | 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground). |
| Directivity Factor (Q) | 2.2 |
| Directivity Index (DI) | 3.4 dB |
| Maximum SPL (1m) | 105 dB |
| Impedance | 8Ω (at 8Ω setting) |
| Insertion Loss | <1.0 dB at any tap setting |
| Thru Setting | 8Ω nominal |
| Recommended Protective High-Pass | 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct |
| LF Driver | LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome. |
| Grille | Powder coated stainless steel. |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 432 x 291 x 291mm (17 x 11.5 x 11.5 in.) |
