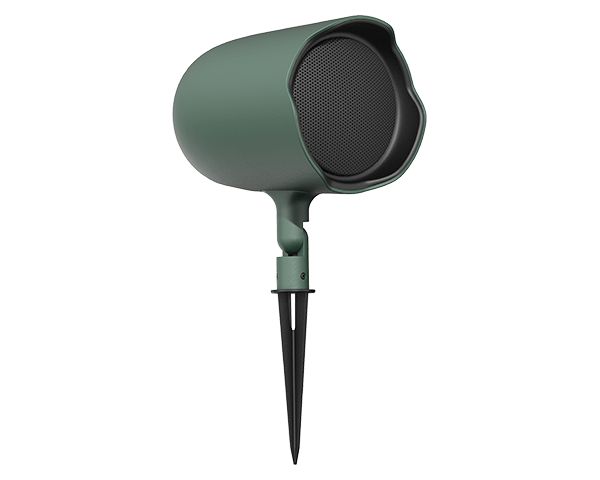

JBL GSF6
Ground-Stake Landscape Loudspeaker
- Frequency range: 65 Hz–20 kHz
- IP56 rated against water and dust ingress
- Bottom drip hole provides drainage for drivers
- IP56 rated against water and dust ingress
- Includes tap selector located on bottom of speaker, away from water incursion
Specification
 |
|
| Quick Details Frequency Range (-10dB) | 65 Hz – 20 kHz |
| Frequency Response (+/-3 dB) | 95 Hz - 20 kHz |
| Power Rating | 100 W Continuous Program (2 hrs), 50 W (200 W Peak), Continuous Pink Noise (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 88 dB (ave. 2 kHz – 20 kHz) |
| Maximum SPL | 111 dB peak (105 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 70° conical |
| Nominal Impedance | 8Ω [ at 8Ω tap ] |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W |
| Driver | 165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Hunter Green RAL 6018, or Tan RAL7004 |
| Dimensions | Cabinet 217mm height/diameter x 293mm depth (8.6 x 11.6 in) |
| Net Weight | 3.5kg (7.7 lbs) |
