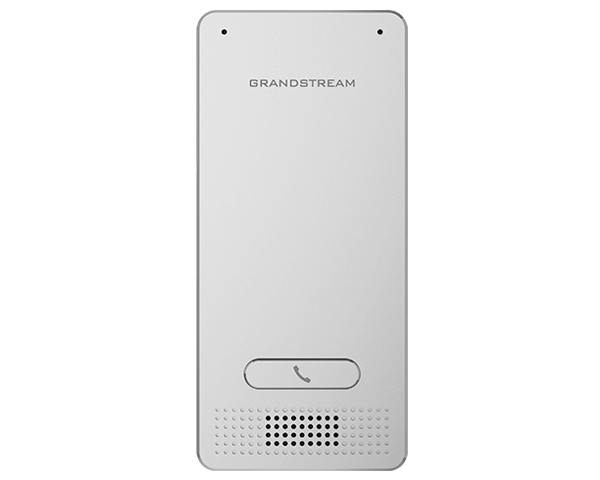

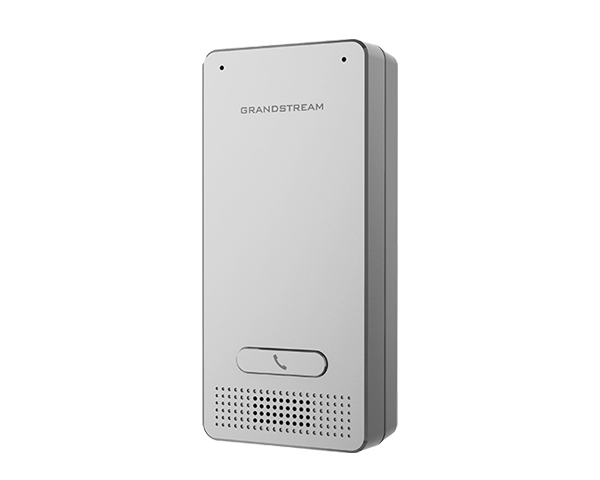

GDS3702 HD Audio IP Intercom System
HD Audio IP Intercom System
- Supports SIP calls to IP phones to facilitate communication
- Built with a metal casing to make it weatherproof and vandal resistant
- HD audio options with up to 1.5m of audio input and 3m of audio output
- Integrated PoE to power the device and provide a network connection
- Built-in microphone and speaker offers voice options and intercom functionality
Specification
![]() |
|
| Supply Voltage | 12VDC / 1A (AC power adapter not included) |
| Network | 10M / 100M Auto-sensing |
| PoE | PoE IEEE 802.3af Class3 |
| SIP / VoIP Support | Yes, broad interoperability |
| Voice Codecs | G.711μ/a, G.722, DTMF(RFC2833, SIP INFO), AEC, ANC |
| Audio Input | Built-in microphones up to 1.5m |
| Audio Output | HD loudspeaker 2W, up to 3m |
| Input | 2 Optocoupler Input, Vin < 15V, for door sensor or other low voltage device |
| Output | 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device |
| Waterproof Certificate | IP66 (EN60529) |
| Vandal Resistance | IK10 (IEC62262) |
| Temperature and Humidity | Operation: -30°C to 60°C, Storage: -35°C to 60°C, Humidity: 10% to 90% Non-condensing |
| Mounting | On-Wall, In-Wall (Mount Kit required, Sold separately) |
| Dimension (HxWxD) and Weight | On-Wall: 173mm x 80mm x 36mm, In-Wall: 217mm x 120mm x 11.6mm, Unit Weight: 672 gram |
