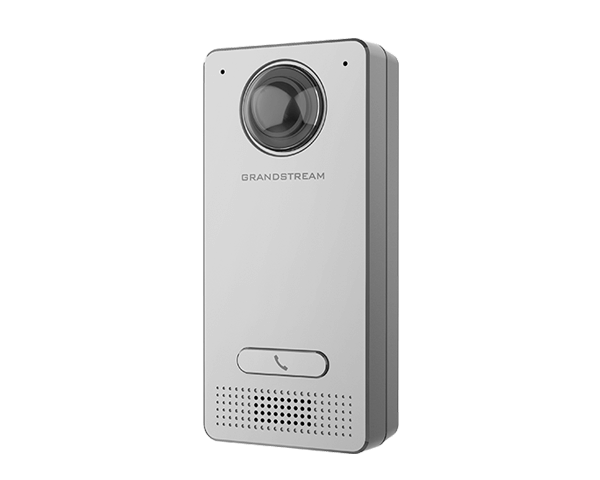

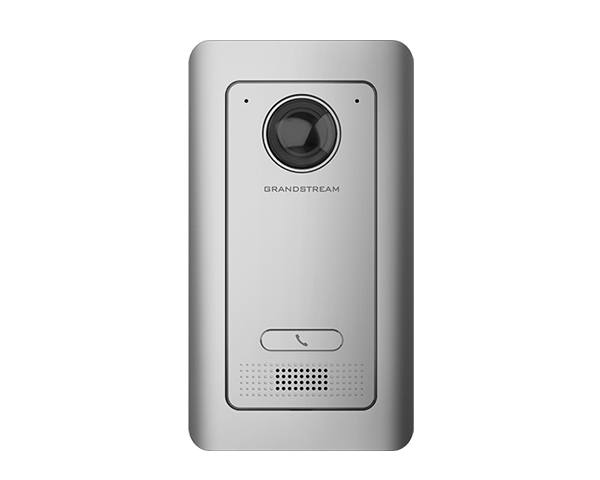

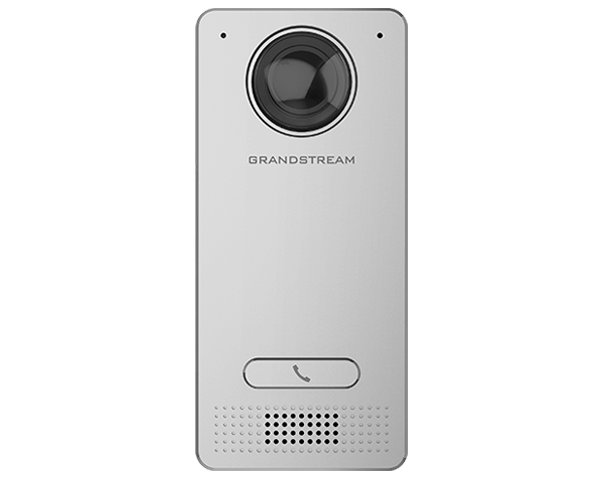

GDS3712 IP Video Intercom
GDS3712 IP Video Intercom System
- Built with a metal casing to make it weatherproof and vandal resistant
- 2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
- Built-in hemispheric camera allows for 180-degree wall-to wall coverage
- Integrated PoE to power the device and provide a network connection
- Built-in microphone and speaker offers voice options and intercom functionality
Specification
 |
|
| Max Frame Rate | 30 frames per second |
| Video Compression | H.264 High Profile / Main Profile / Baseline Profile, Motion JPEG |
| Image Sensor Resolution | 1/2.7", 2 Megapixel, 1920 x 1080 |
| Lens Type | 1/2", F2.5, FOV:180°(W) x 150°(H) |
| Wide Dynamic Range | Yes, up to 120dB |
| Video Bit Rates | 128 Kbps to 4 Mbps, multi-rate for preview & recording |
| PoE | IEEE 802.3af Class3 |
| Multi-Stream Resolution | High-performance streaming server allowing multiple simultaneous access, Primary video stream: 1920 x 1080 resolution for continuous full HD recording, Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls, Third video stream: 320 x 240 resolution for smartphone applications |
| Network Protocol | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069, ARP/RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP |
| SIP / VoIP Support | Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms |
| Voice Codecs | G.711μ/a-law, G.722, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), AEC |
| Security | User and administrator level RTSP access, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q |
| Audio Input | Built-in microphone, up to 1.5m with AEC |
| Audio Output | Built-in HD loudspeaker (2 watts), good up to 3 m |
| Button | 1 call button with Blue LED backlight |
| Network Interface | 10M / 100M auto-sensing |
| Dimensions (H x W x D) and Weight | On-Wall: 173mm(H) x 80mm(W) x 36mm(D), In-Wall: 217mm(H) x 120mm(W) x 11.6mm(D), Weight: 0.625 kg |
| Power Supply | PoE IEEE 802.3af Class 3 or 12VDC/1A connection (AC power adapter not included) |
| Protection Class | IP66 (EN60529); IK10 (IEC62262) |
| Temperature and Humidity | Operation: -30°C to 60°C (-22°F to 140°F), Storage: -35°C to 60°C (-31°F to 140°F), Humidity: 10% to 90% Non-condensing |
