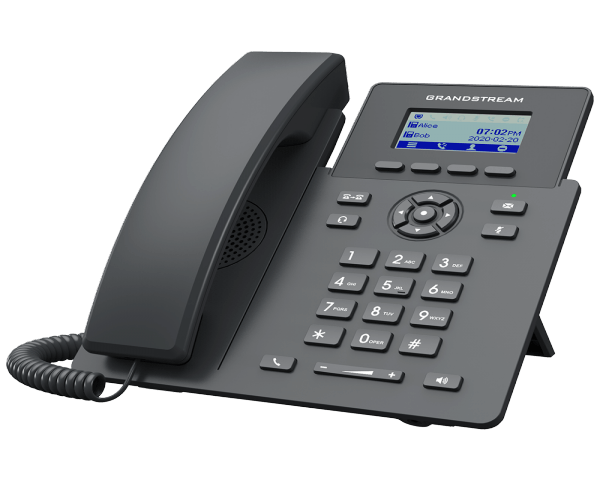

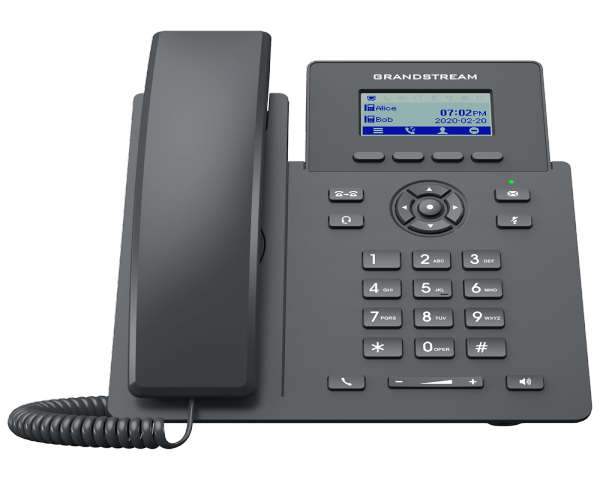

GRP2601P Essential IP Phone
GRP2601P Essential IP Phone
- Equipped with noise shield technology to minimize background noise
- 5 way audio conferencing for easy conference calls
- EHS support for Plantronics headsets
- GDMS online device management and provisioning
- The GRP2601P includes built in PoE to power the device and give it a network connection
Specification
 |
|

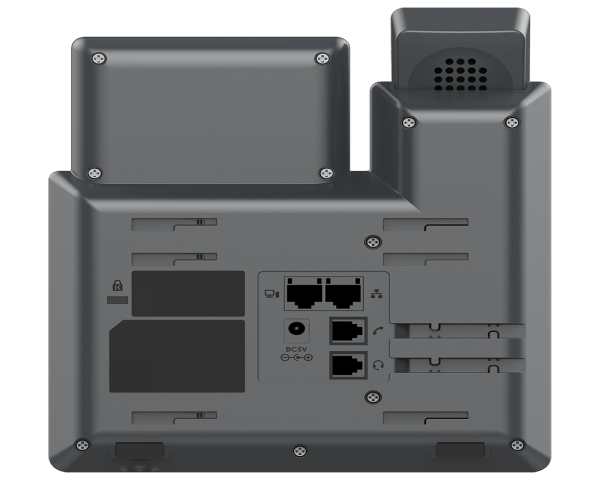

| Network Interfaces | Dual switched auto negotiation 10 / 100 Mbps Ethernet ports, integrated PoE (GRP2601P only) |
| Graphic Display | 132 x 48 (2.41") LCD display |
| Protocols / Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, RTCP-XR, HTTP / HTTPS, ARP, ICMP, DNS(Arecord, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6 |
| Voice Codecs and Capabilities | Support for G.729A/B, G.711μ/a-law, G.726, G.722(wide-band), G.723, iLBC, OPUS, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB |
| Feature Keys | 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER,HEADSET, MUTE, SEND / REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Telephony Features | Hold, transfer, forward, 5 way conference, call park, call pickup, downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 800 records), off hook auto dial, auto answer, click to dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail over |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets) |

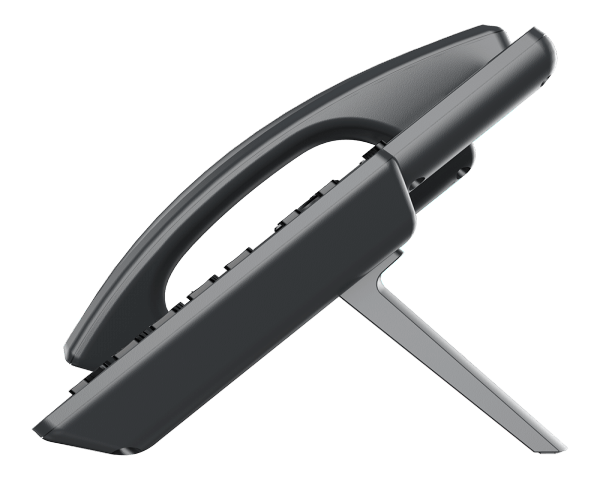

| Base Stand | Yes, 1 angle position available (45°), Wall Mountable (wall mount sold separately) |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot |
| Multi language | English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more |
| Upgrade / Provisioning | Firmware upgrade via FTP / TFTP / HTTP / HTTPS, mass provisioning using GDMS / TR069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only) |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing |
| Physical | Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset), Unit weight:650g; Package weight:810g (860g for GRP2601) |
