GRP2604P Carrier Grade IP Phone
GRP2604P Carrier Grade IP Phone
- Supports 5 way audio conferencing for easy conference calls
- Enterprise level protection including secure boot, dual firmware images, and encrypted data storage
- Equipped with noise shield technology to minimize background noise
- 3 lines, 6 SIP accounts, up to 3 call appearances
- Swappable faceplate to allow for easy logo customization
Specification
 |
|
| Network Interfaces | Dual switched auto negotiation 10 / 100 / 1000 Mbps Ethernet ports, integrated PoE (GRP2604P only) |
| Graphic Display | 132 x 64 (2.7") backlit graphical LCD display |
| Protocols / Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6 |
| Feature Keys | 3 line keys with dual-color LED and support for 6 SIP accounts, 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 10 BLF keys, 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Auxiliary Port | RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets) |
| Voice Codecs and Capabilities | Support for G.729A/B, G.711μ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB |
| Telephony Features | Hold, transfer, forward, 5 way conference, call park, call pickup, shared call appearance(SCA) / bridged line appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail over |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

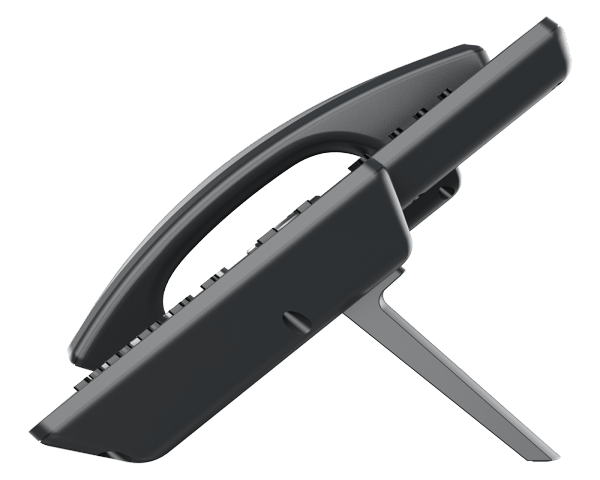

| Base Stand | Yes, 2 angle positions available (39° & 45°), Wall Mountable (wall mount sold separately) |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot |
| Multi language | English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more |
| Upgrade / Provisioning | Firmware upgrade via FTP / TFTP / HTTP / HTTPS, mass provisioning using GDMS / TR-069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (GRP2604P Only) |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non condensing |
| Package Content | GRP2604 phone, handset with cord, base stand, universal power supply (GRP2604 only), network cable, Quick Installation Guide, BLF Lables |
| Physical | Dimension: 214mm (L) x 206mm (W) x 68mm (H) (with handset) Unit weight: 790g; Package weight: 1100g for GRP2604P & 1150g for GRP2604 |
