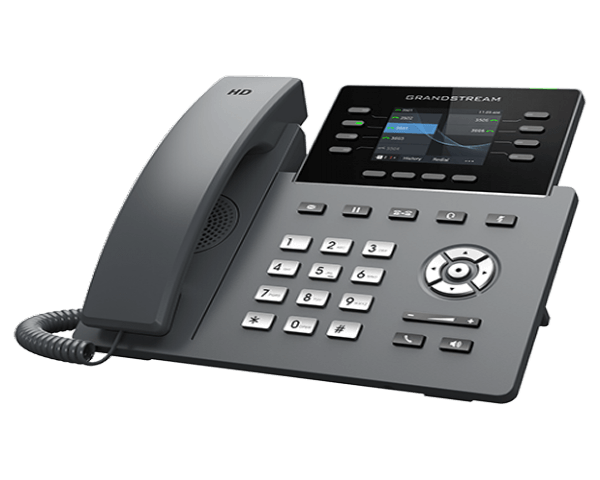

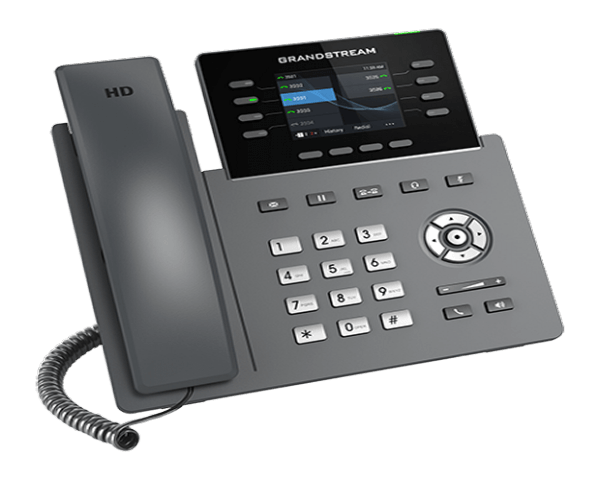

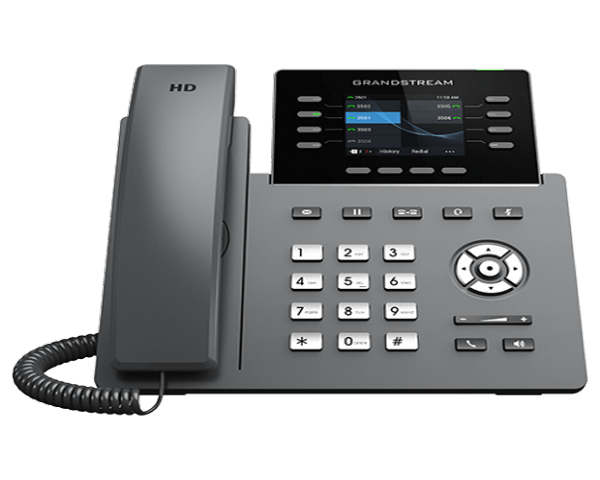

GRP2624 Professional IP Phone
GRP2624 Professional IP Phone
- Dual switched autosensing 10 / 100 / 1000 Mbps Gigabit Ethernet ports with integrated PoE
- Supports 5 way audio conferencing for easy conference calls
- Integrated Bluetooth to connect headsets, sync contacts and calendars
- Enterprise level protection including secure boot, dual firmware images, and encrypted
- Swappable faceplate to allow for easy logo customization data storage
Specification
 |
|
| Network Interfaces | Dual switched auto sensing 10 / 100 / 1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Protocols Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Graphic Display | 2.8 inch (320x240) TFT color LCD |
| Wi-Fi | Yes, integrated dual band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz) |
| Bluetooth | Yes, integrated |
| Feature Keys | 8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive, softkeys, 5 navigation / menu keys, 9 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND / REDIAL, SPEAKERPHONE, VOL+, VOL- |

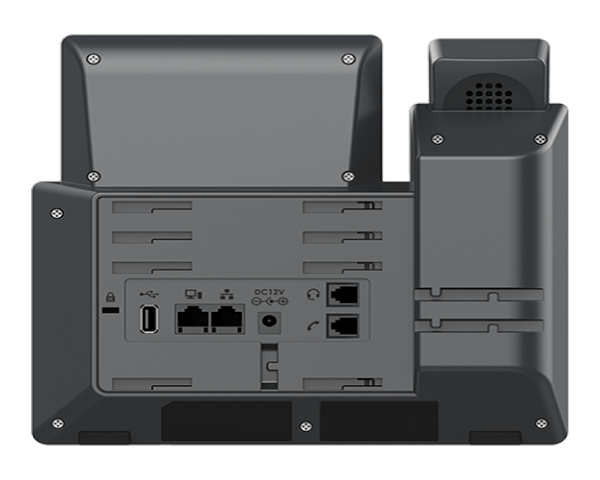

| Auxiliary Port | RJ9 headset jack allowing EHS with Plantronics headsets, USB to support Grandstream’s GUV Series headsets and other USB headsets |
| Voice Codecs and Capabilities | Support for G7.29A/B, G.711μ/a-law, G.726, G.722 (wide-band), G723, iLBC, OPUS, in band and out of band DTMF (in audio, RFC2833, SIP INFO) |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio and dual microphone. |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared call appearance (SCA), bridged line appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 2000 records), XML customization of screen, off hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail over |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio and dual microphone. |
| Extension Module | Yes, GBX20 |
| Base Stand | Yes, 2 angle positions available, Wall Mountable (Wall Mount sold separately) |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot. |
| Multi language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more |
| Power & Green Energy Efficiency | Universal power adapter included, Input: 100-240V , Output: +12V, 1A ,Integrated Power over Ethernet (802.3af), Max power consumption 9.5W (power adapter) or 10.8W (PoE) |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing |
