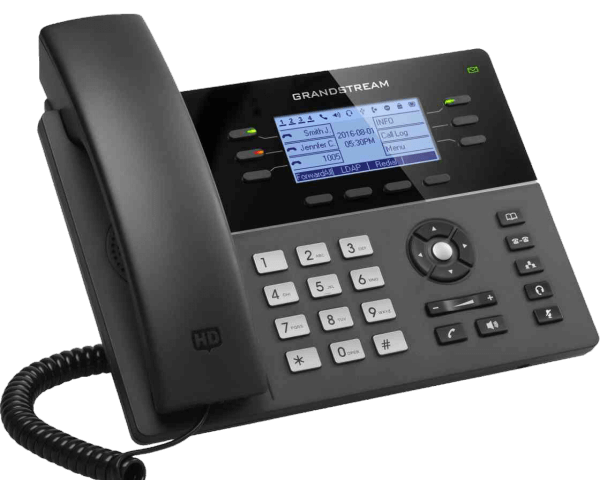

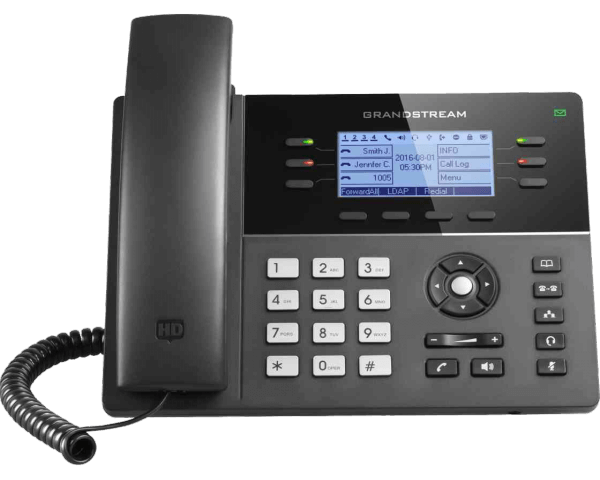

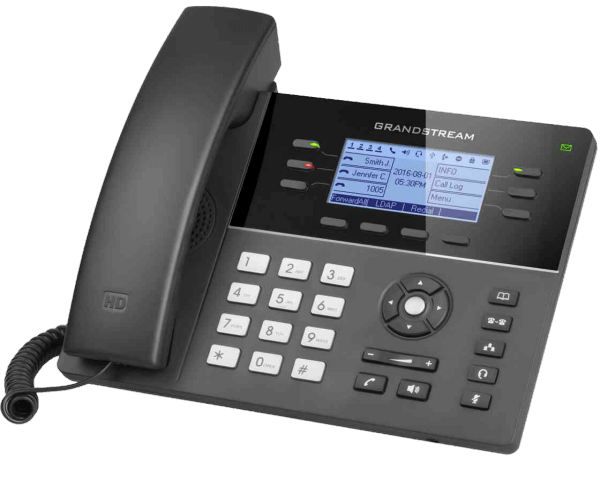

GXP1760W WiFi Enabled IP Phone
GXP1760W WiFi Enabled IP Phone
- HD wideband audio, full duplex hands free speakerphone with advanced acoustic echo cancellation
- Built in PoE to power the devices and give it a network connection
- Supports EHS compatible Plantronics’s headsets
- Large phonebook capacity with up to 2000 contacts and call history with up to 500 records
- Use with Grandstream’s UCM series IP PBX appliance for Zero Config provisioning, 1 touch call recording & more
Specification
 |
|
| Network Interfaces | Dual switched auto-sensing 10 / 100Mbps ethernet ports with integrated POE |
| Protocols / Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record,SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR 069, 802.1x, TLS, SRTP, IPV6 |
| Graphic Display | 200 x 80 pixel (3.3") backlit LCD display |
| WiFi | Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz) |
| Feature Keys | 6 line keys with up to 3 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation / menu keys, 8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND / REDIAL, SPEAKERPHONE, VOLUME |
| Voice Codecs | Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a sepa rate EHS port reserved for external EHS adapter in the future |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared call appearance (SCA) / bridged line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customization of screen, off hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail over |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

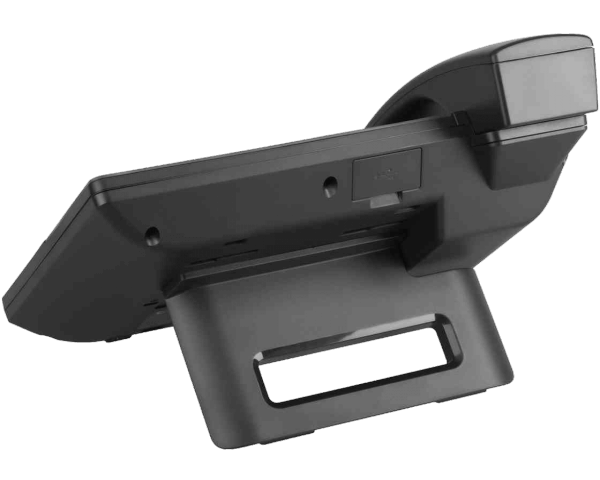

| Base Stand | Yes, 2 angle positions available. Wall Mount stand sold separately |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5 sess based authentication, 256 bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support |
| Multi Language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
| Upgrade / Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal power adapter included, Input:100-240V; Output: +5V, 2A; Integrated Power-over-Ethernet (802.3af), Max power consumption : 5W |
| Physical | Dimension: 231mm(W) x 167mm(L) x 86mm(H); Unit weight:0.925kg ; Package weight:1.55kg |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non condensing |
| Package Content | GXP1760W phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
