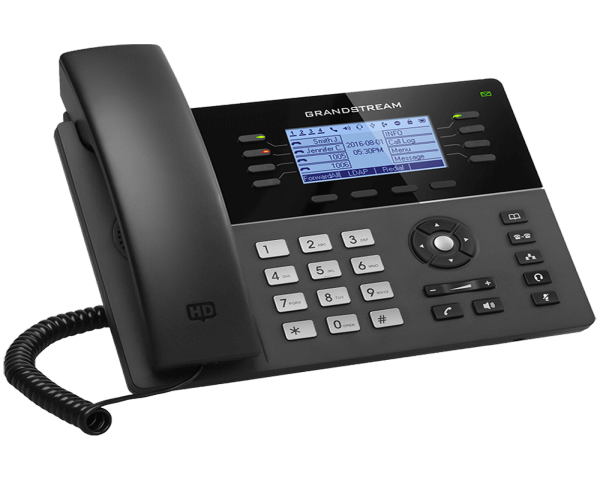

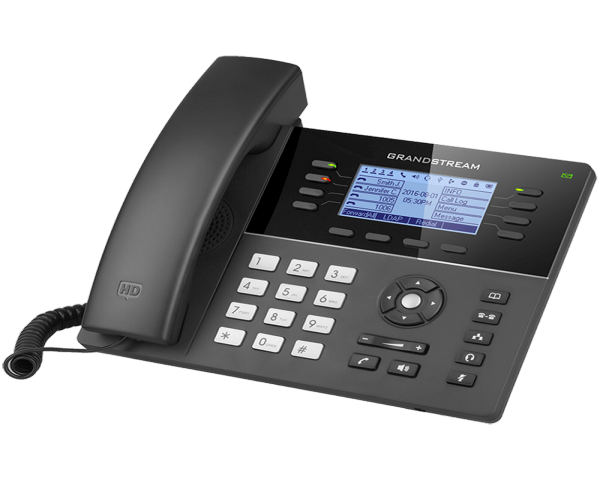

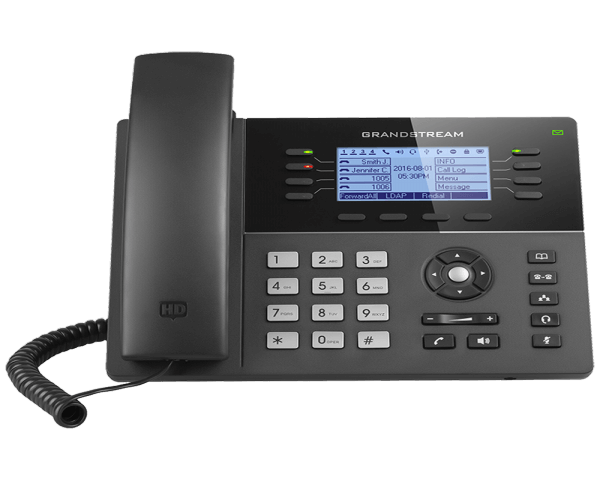

GXP1780-82 Mid Range IP Phone
GXP1780-82 Mid Range IP Phone
- Supports headset use with a RJ9 headset jack and EHS support for EHS capable Plantronics headsets
- TLS and SRTP security encryption technology to protect calls & accounts and Kensington Security Slot support
- Large phonebook capacity with up to 2,000 contacts and call history with up to 500 records
- Built in USB port for importing and exporting data only
- 32 digitally programmable & customizable BLF / fastdial keys
Specification
 |
|
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |
| Graphic Display | 200 x 80 pixel (3.3") backlit LCD display |
| Network Interfaces | Dual switched Ethernet ports with integrated PoE. Auto-sensing 10 / 100Mbps (GXP1780), 10/100/1000Mbps (GXP1782) |
| Protocols / Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Bluetooth | No |
| Feature Keys | 8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation / menu keys, 8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND / REDIAL, SPEAKERPHONE, VOLUME |
| Voice Codecs | Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a separate EHS port reserved for external EHS adapter in the future. |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared call appearance (SCA) / bridged line appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customization of screen, off hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail over |

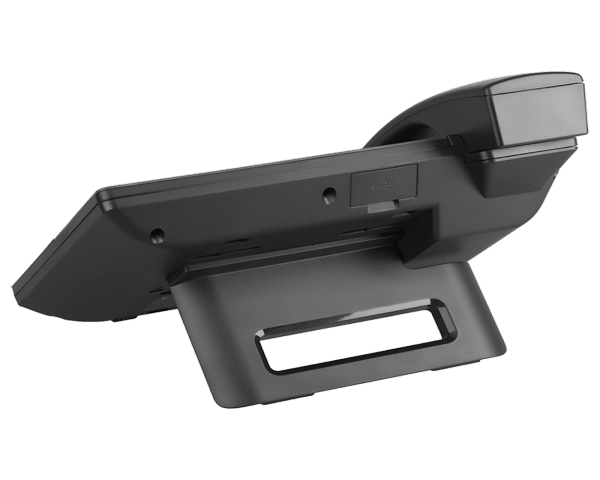

| Base Stand | Yes, 2 angle positions available. Wall Mount stand sold separately. |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5 sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support |
| Power & Green Energy Efficiency | Universal power adapter included, Input:100-240V, Output: +5V, 1A; Integrated Power over Ethernet (802.3af), Max power consumption: 5W |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non condensing |
