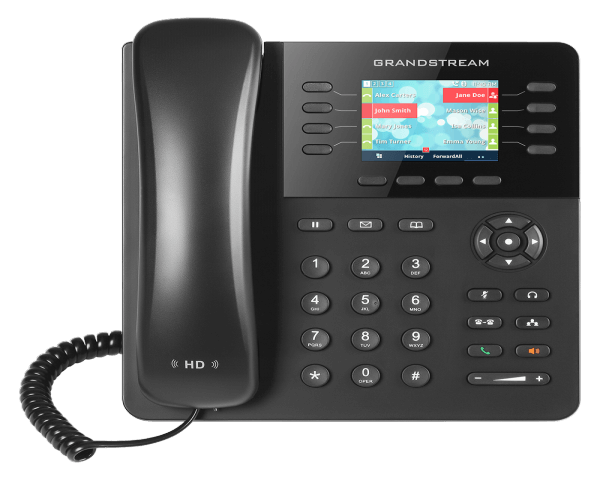

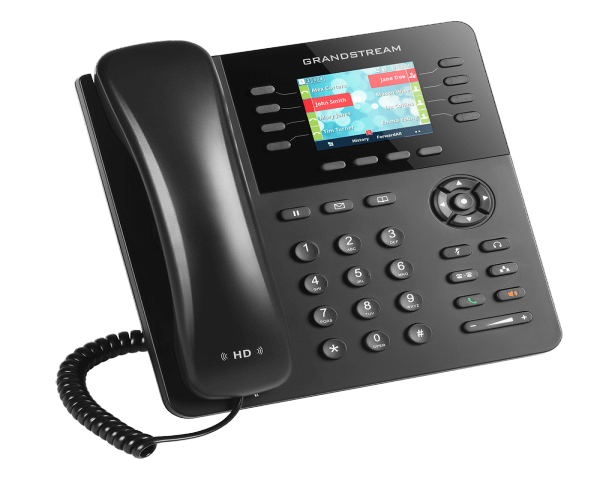

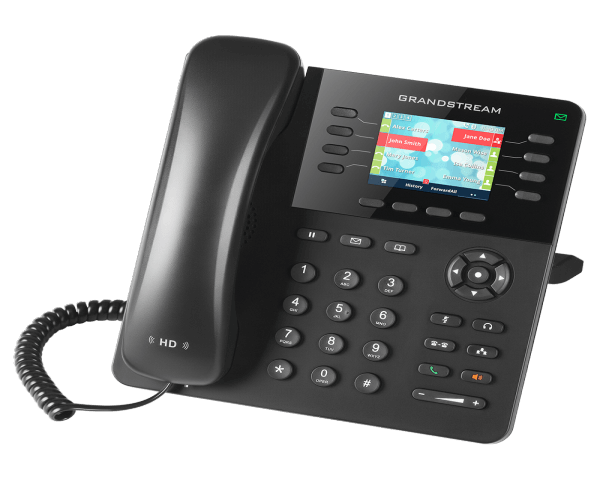

GXP2135 High End IP Phone
GXP2135 High End IP Phone
- 4 way audio conferencing for easy conference calls
- Dual switched, auto sensing Gigabit ports, built in PoE
- 32 digitally programmable and customizable BLF / speed dial keys
- Supports EHS compatible Plantronics headsets
- Built in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
Specification
 |
|
| Graphic Display | 2.8 inch (320x240) TFT color LCD |
| Protocols / Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, 802.1x, TLS, SRTP, IPV6, CDP / SNMP / RTCP-XR |
| Network Interfaces | Dual switched auto sensing 10 / 100 / 1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Bluetooth | Yes, integrated |
| Feature Keys | 8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation / menu keys, 11 dedicated function keys for : message (with led indicator), phonebook, transfer, conference, hold, headset, mute, send / redial, speakerphone, vol+, vol- |
| Voice Codec | Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band),G723.1, iLBC, Opus, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| Telephony Features | Hold, transfer, forward, 4 way conference, call park, call pickup, shared call appearance (SCA) / bridged line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customization of screen, off hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail over |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

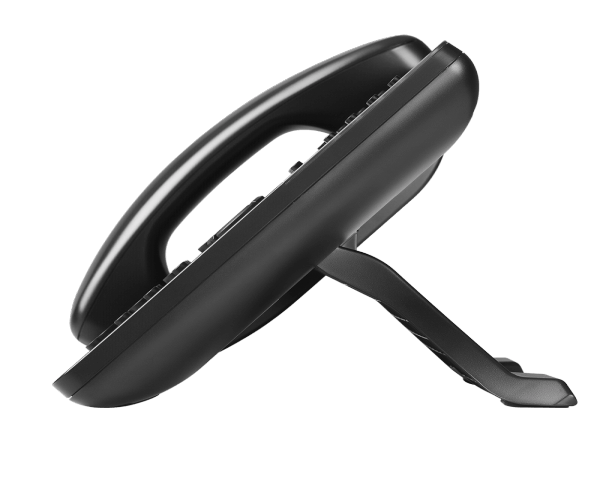

| Base Stand | Yes, 2 angle positions available, Wall Mountable |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5 sess based authentication, 256 bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control |
| Multi language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, sim plified and traditional Chinese, Korean, Japanese and more |
| Upgrade / Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR069 or AES encrypted XML configuration file, FTP / FTPS |
| Power & Green Energy Efficiency | Universal power adapter included, Input:100-240V, Output: +12V, 0.5A, Integrated Power-over-Ethernet (802.3af), Max power consumption : 6.4W (power adapter) or 6.49W (PoE) |
| Physical | Dimension: 201mm(W) x 193mm(L) x 85mm(H), Unit weight:0.85kg, Package weight:1.12kg |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non condensing |
| Package Content | GXP2135 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
