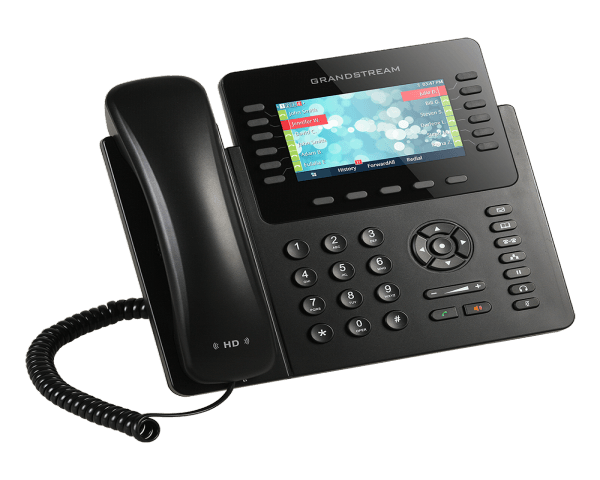

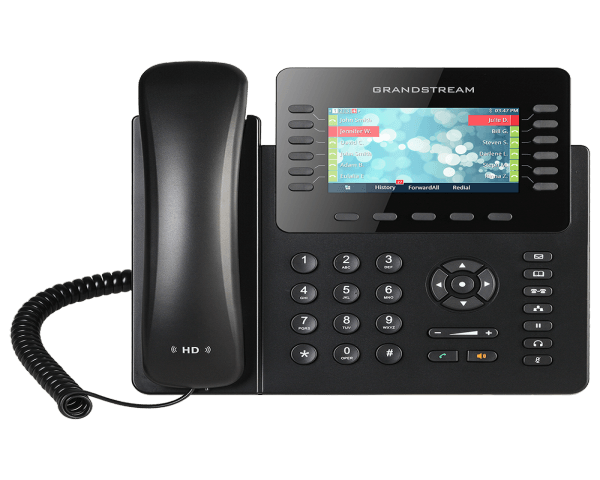

GXP2170 High End IP Phone
GXP2170 High End IP Phone
- 4.3 inch (480x272) color screen LCD
- Dual Gigabit ports, integrated PoE
- 48 on screen digitally customizable BLF / speed dial keys
- 12 lines, 6 SIP accounts, 5 soft keys and 5 way voice conferencing
- Integrated Bluetooth
Specification
 |
|
| Graphic Display | 4.3 inch (480x272) TFT color LCD |
| Network Interfaces | Dual switched auto sensing 10 / 100 / 1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Protocols / Standards | SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6, CDP / SNMP / RTCP XR |
| Bluetooth | Yes, integrated |
| Feature Keys | 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive soft keys, 5 navigation / menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND / REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Voice Codecs | Support for G7.29A/B, G.711μ/alaw, G.726, G.722 (wide band), G723.1, iLBC, Opus, in band and out of band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port |
| Telephony Features | Hold, transfer, forward, 5 way conference, call park, call pickup, shared call appea rance (SCA) / bridged line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, persona lized music ringtones and music on hold, server redundancy and fail over |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

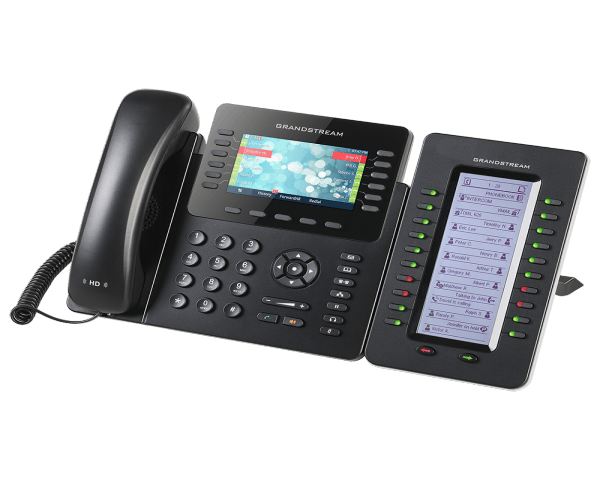

| Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick dial / BLF keys which dual color LED, 2 navigation keys, and less than 1.2W power consumption per unit. |

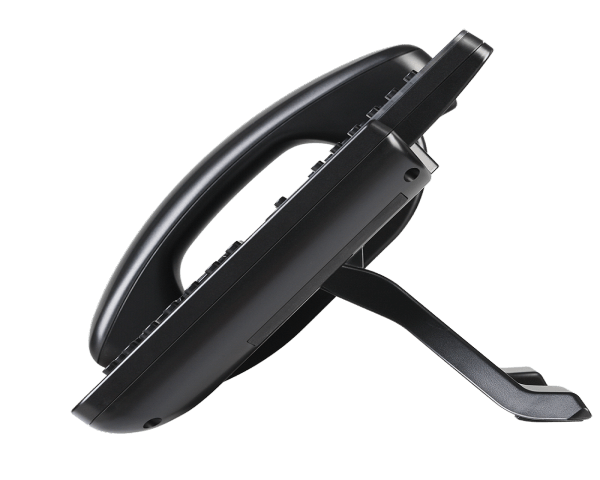

| Base Stand | Yes, 2 angle positions available, Wall Mountable |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5 sess based authentication, 256 bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control |
| Multi language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more |
| Upgrade / Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR069 or AES encrypted XML configuration file, FTP / FTPS |
| Power & Green Energy Efficiency | Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A , Integrated Power over Ethernet (802.3af), Max power consumption : 5.4W (without GXP2200EXT) or 9.2W (with 4 cascaded GX-P2200EXTs) |
| Physical | Dimension: 228mm(W) x 206mm(L) x 46mm(H), Unit weight:0.98kg, Package weight:1.43kg |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non condensing |
