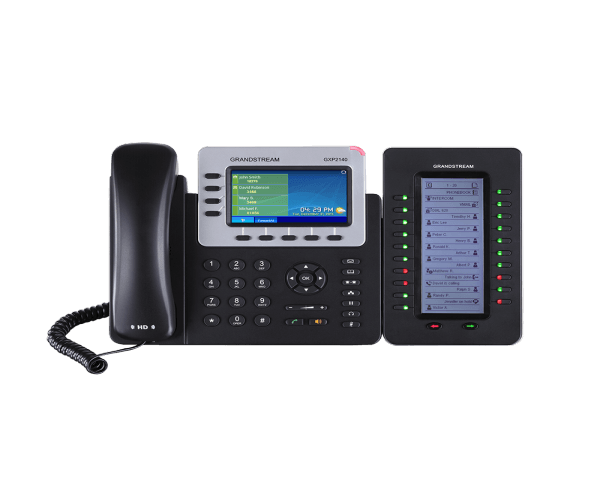

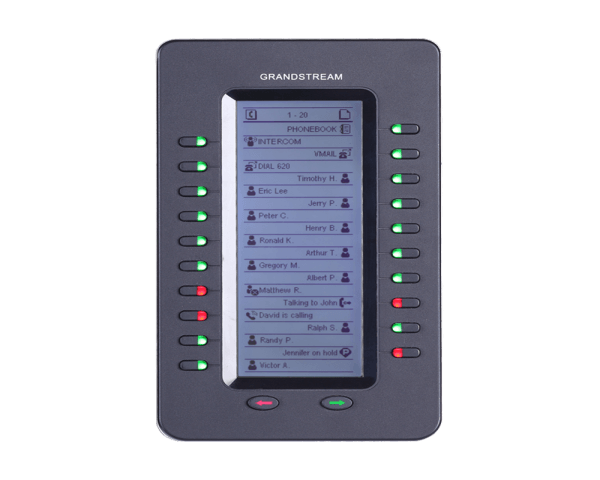

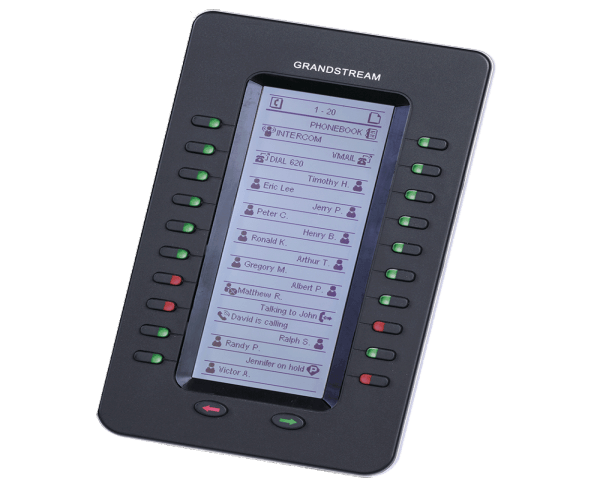

GXP2200EXT Extension Module
GXP2200EXT Extension Module
- Daisy chain up to 4 modules for up to 160 contacts / extensions
- BLA (bridged line appearance) / SCA (shared call appearance), BLF (busy lamp field, standard or eventlist), Call Park / Pick up, Speed Dial, Presence, Intercom, and conference / transfer / forward and more
- 128 x 384 backlit LCD display
- 20 programmable dual color buttons per module, 2 pages per module (40 contacts total)
Specification
 |
|
| Feature Support | Local GUI with animation driven from the host GXP2140 or GXP3240 phone, Multiple line / call appearances |
| Power | Powered by the host phone |
| Compatible Grandstream IP phones | GXP2140, GXP2170 and GXV3240 |
| Lines | 20 per page (each module contains 2 pages, for up to 40 lines per module Up to 160 with 4 daisy chained modules) |
| Firmware Upgrades | Delivered by the host phone |
| Dimensions (L x W x H) | 206 mm x 117mm x 32mm |
| Weight | 0.38kg |
| Temperature | 0 ~ 40ºC (32 ~ 104ºF ) |
| Humidity | 10%-90% Non condensing |
| Compliance | FCC / CE / C-Tick |
