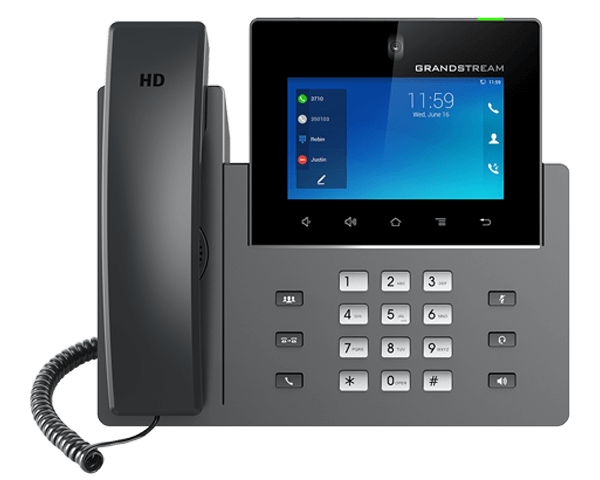

GXV3350 IP Video Phone
GXV3350 IP Video Phone
- Integrated dualband Wi-Fi (2.4GHz & 5GHz)
- Built-in PoE / PoE+ for power and network connections
- 4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash
- 5.0” (1280×720) capacitive 5-point touch screen HD TFT LCD
- Peripherals include HDMI-out, USB, headset jack, EHS
- Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets
Specification
 |
|
| Network Interfaces | Dual switched 10/100/1000 Mbps ports with integrated PoE / PoE+ |
| Graphic Display | 5.0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD |
| Protocols / Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN |
| Camera | Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps |
| Bluetooth | Yes, integrated Bluetooth 4.2 + EDR |
| Wi-Fi | Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n |
| Feature Keys | 11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKER PHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU and BACK |

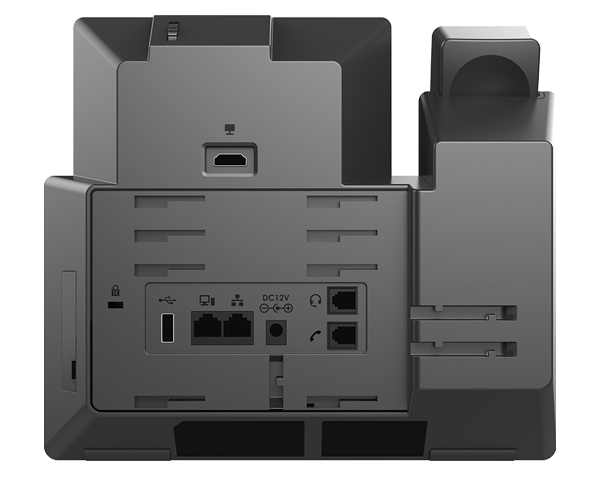

| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps) |
| Feature Keys | 11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKER PHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU and BACK |
| Voice Codecs and Capabilities | Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band and out of band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS |
| Video Codecs and Capabilities | H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto focus and auto exposure |
| Telephony Features | Hold, transfer, forward (unconditional / no-answer / busy), call park/pickup, 6-way audio conference (including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), programmable key, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over |

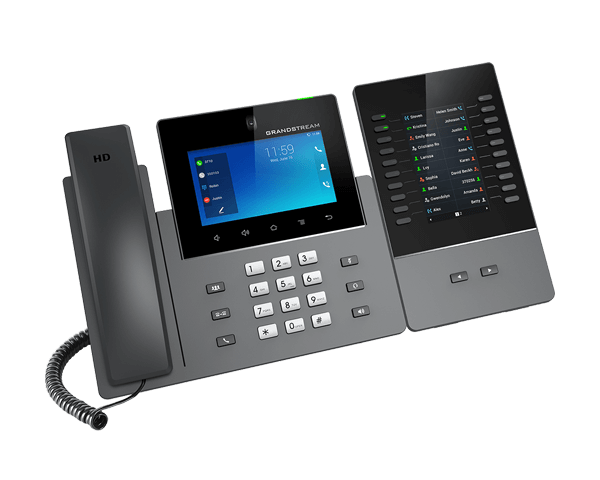

| Extension Module | Yes, can power up to 4 GBX20 EXT modules which feature a 272x480 color LCD, 20 quick-dial / BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit |
| HD Audio | Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio |
| Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A, Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 |
