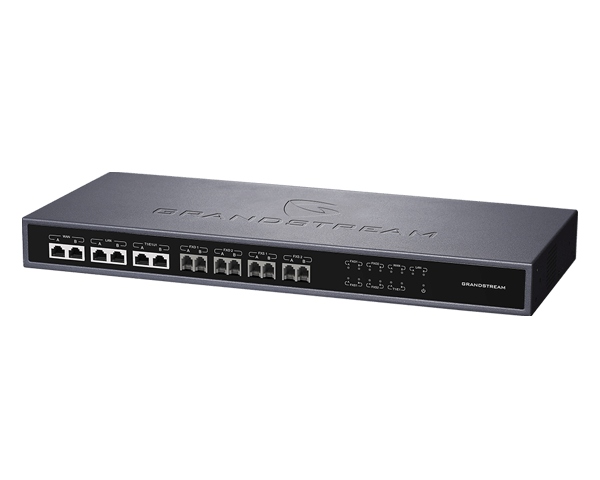

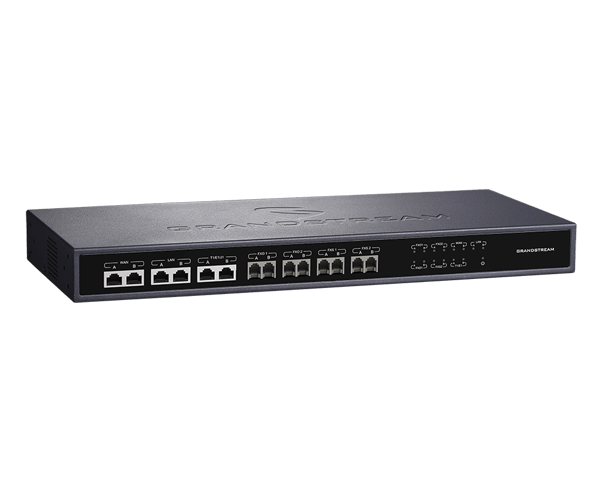

HA100 IP PBX
HA100 IP PBX
- Up to 14 LED indicators showing real-time status of all of the telecom lines, network links, auxiliary devices
- Smart failover solution that automatically switches to a hot-standby secondary UCM6510 if the primary one fails
- Connects and constantly monitors two UCM6510 together for high availability
- Gratuitous ARP forces SIP endpoints to refresh the MAC address of the new UCM6510 without interruptions
- Fast 10 to 50 second system switching time depending on the number of registered endpoints
Specification
 |
|

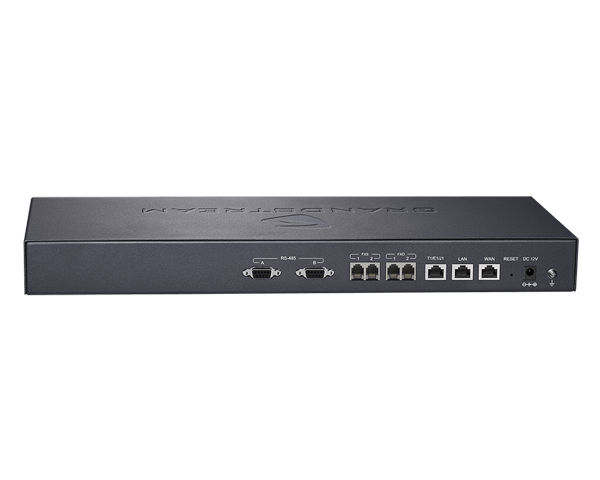

| Interfaces : Back panel PSTN Line FXO Ports | 2 ports |
| Analog Telephone FXS Ports | 2 ports |
| T1 / E1 Interface | 1 port |
| Network Interfaces | 1 LAN / 1WAN |
| Reset Switch | Yes |
| RS-485 | 2; 1 for Primary UCM6510; 1 for Secondary UCM6510 |

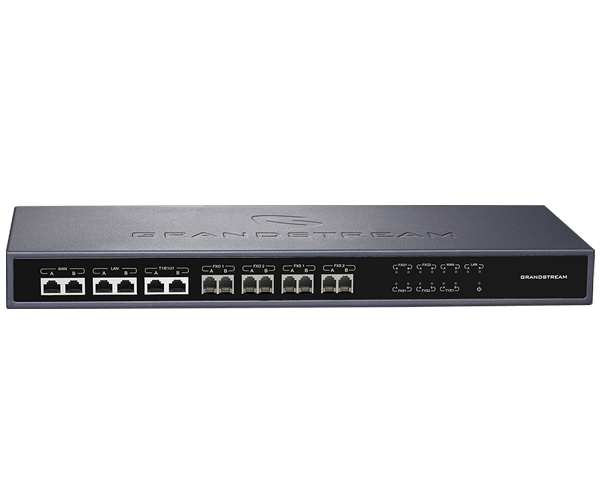

| Interfaces : Front panel PSTN Line FXO Ports | 4; 2 FXO A, 2 FXO B |
| Analog Telephone FXS Ports | 4; 2 FXS A, 2 FXS B |
| T1 / E1 Interface | 2 ports; T1 / E1 A, T1 / E1 B |
| Network Interfaces | 2 LAN, 2 WAN |
| LED Indicators | Power, T1/E1, FXS, FXO, LAN, WAN |
