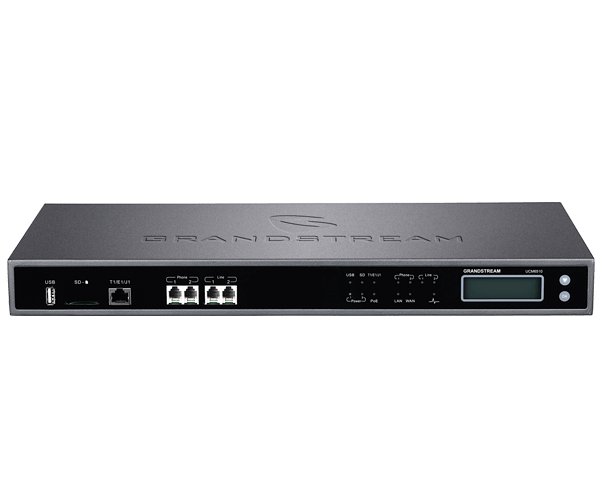

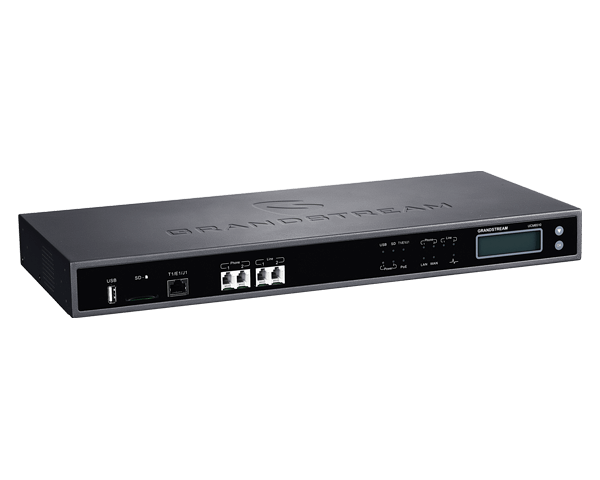

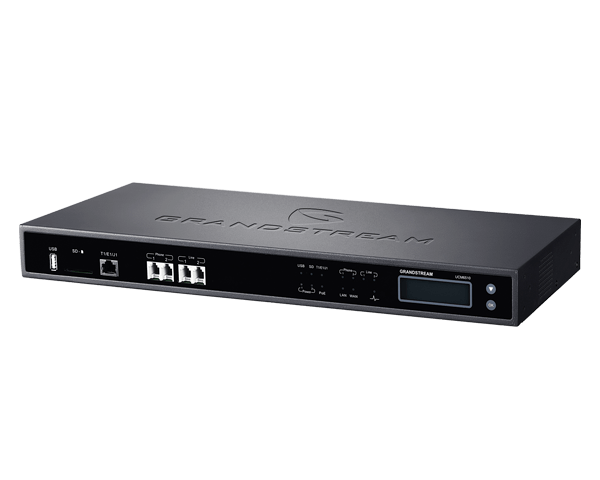

UCM6510 Enterprise Grade Ip PBX
UCM6510 Enterprise Grade IP PBX
- 1 GHz quad-core Cortex A9 processor
- 1 GB DDR3 Ram, 32GB Flash
- Gigabit network ports with Integrates PoE, USB, SD card, integrated NAT router
- Quickly setup and provision Grandstream endpoints using the Auto-Discovery and Zero Config feature within the product’s web user interface
- Supports up to 2000 users and 200 SIP trunk accounts, up to 200 concurrent calls and up to 64 conference attendees
Specification
 |
|
| PSTN Line FXO Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
| Analog Telephone FXS Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
| T1/E1/J1 Interface | 1 RJ45 port |
| Network Interfaces | Dual Gigabit ports (switched or routed) with PoE+ |
| NAT Router | Yes (user configurable) |
| Peripheral Ports | USB, SD |
| LED Indicators | Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN |
| Reset Switch | Yes, long press for factory reset and short press for reboot |
| LCD Display | 128x32 dot matrix graphic LCD with DOWN and OK buttons |
| Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
| Voice and Fax Codecs | G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
| Video Codecs | H.264, H.263, H263+ |
| QoS | Layer 3 QoS, Layer 2 QoS |
| DTMF Methods | In Audio, RFC2833 and SIP INFO |
| Digital Signaling | TPRI, SS7, MFC/R2, RBS (pending) |
| Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay |
| Disconnect Methods | Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
| Universal Power Supply | Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A |
| Dimensions | 440mm(L) x 185mm(W) x 44mm(H) |
| Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills / availability / work-load, in-queue announcement |
