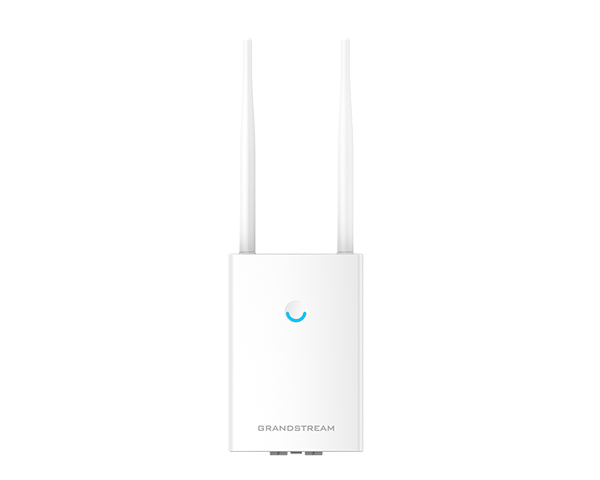

GWN7605LR
Outdoor Wi-Fi access point
- Dual-band 2×2:2 MUMIMO with beam-forming technology
- Self power adaptation upon auto detection of PoE or PoE+
- Supports 100+ concurrent Wi-Fi client devices
- Anti-hacking secure boot and critical data / control lockdown
- Up to 250-meter coverage range
Specification
 |
|
| Quick Details Wi-Fi Standards | IEEE 802.11a/b/g/n/ac (Wave-2) |
| Antennas | 2 dual band external antennas, 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dB |
| Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4Ghz IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4GHz Radio: 2412 – 2484 MHz 5 GHz Radio: 5180-5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40MHz 5G: 20, 40 and 80 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data / control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2×2:2 2.4GHz (MIMO), 2×2:2 5GHz (MU-MIMO) |
| Coverage Range | Up to 250 meters |
| Maximum TX Power | 2.4G: 24 dBm, 5G: 22dBm |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| SSIDs | 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz) |
| Concurrent Client | 100+ |
| Network Interfaces | 2× autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1× Reset Pinhole |
| Mounting | Outdoor metal bar mount or wall mount, kits include |
| LEDs | 1× tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager (BETA) offers premise-based software controller for up to 3,000 GWN AP |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 10.16W |
| Environmental | Operation: -30°C to 70°C, Storage: -30°C to 80°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 358.3mm(L)*115mm(W)*45.3mm(H); Unit Weight: 500g, Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight:655.3 |
| Package Content | GWN7605LR 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
