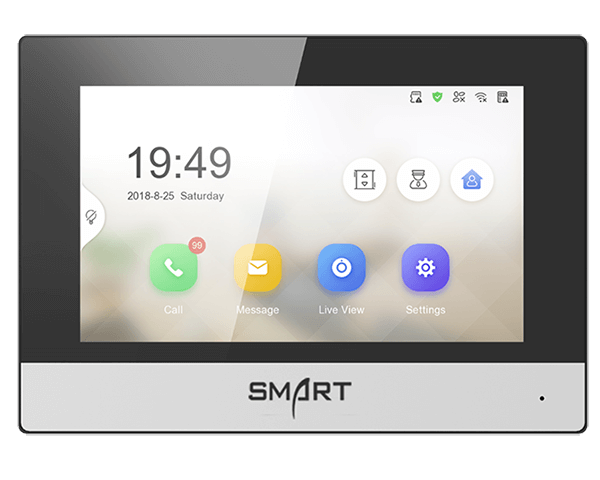

DS-KH6320-WTE1
IP-Based Indoor Station
- Model : DS-KH6320-WTE1
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
Specification
 |
|
| Application environment | Indoor |
| Power consumption | ≤ 6 W |
| Dimensions | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Screen size | 7-inch colorful TFT screen |
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
IP-Based Indoor Station
- Model : DS-KH6320-WTE1
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras

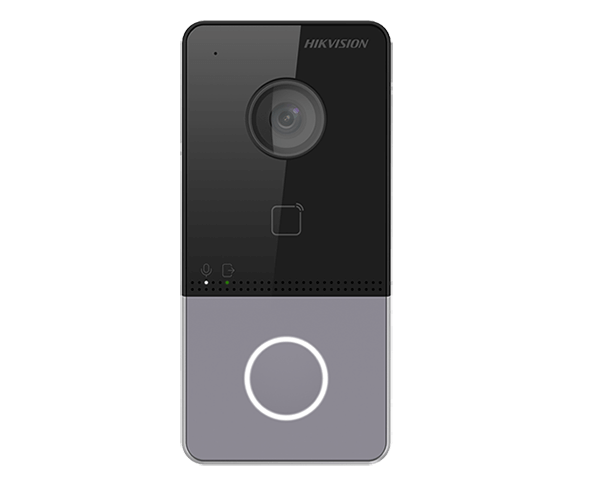

Villa Door Station
- Model : DS-KV6113-WPE1(B)
- Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
- Support web configuration
- Nice industry design, IP65, 2 indicator integrated
- Internal Mifare card reader, 1-ch Indoor station access control
- Noise suppression and echo cancellation
- 2MP HD Camera with IR supplement
