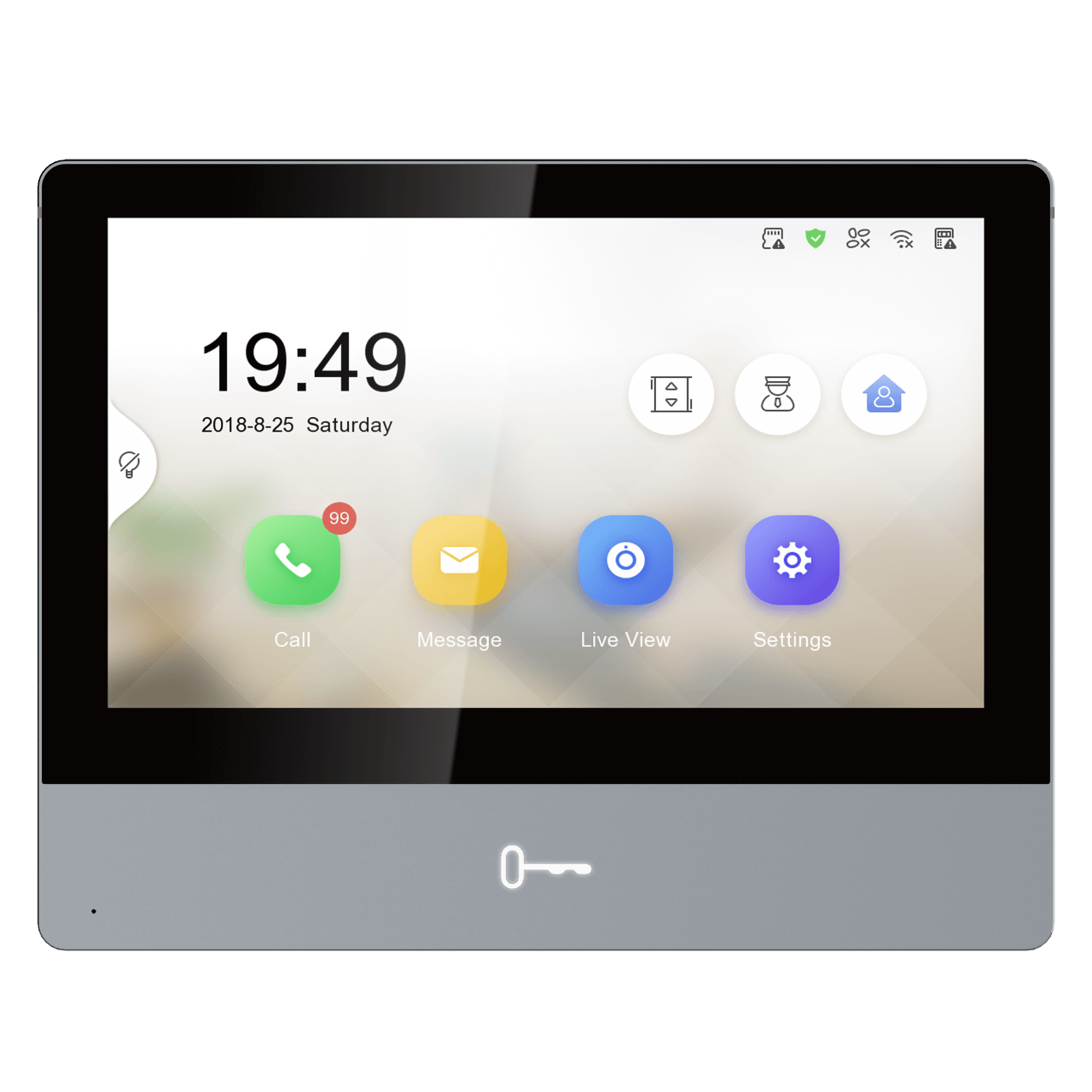

DS-KH8350-TE1
KH8 Series Indoor Station
- Premium tempered glass
- Aerospace-grade aluminum
- New UI V2.0: User friendly design
- 8.6 mm Ultra-slim design
- 7-inch colorful touch screen with resolution 1024 × 600
Specification
|
|
| Display parameters Size | 7-inch |
| Operation method | Capacitive touch screen, physical button |
| Type | Colorful IPS screen |
| Audio parameters Audio quality | Noise suppression and echo cancellation |
| Network parameters Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | 10/100 Mbps self-adaptive |
| Device interfaces Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Power interface | 1 |
| General Button | 1 |
| Installation | Surface mounting |
| Power supply method | IEEE802.3af, standard PoE 12 VDC/1 A |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88") |
| Application environment | Indoor |
| Power consumption | ≤ 7 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek |

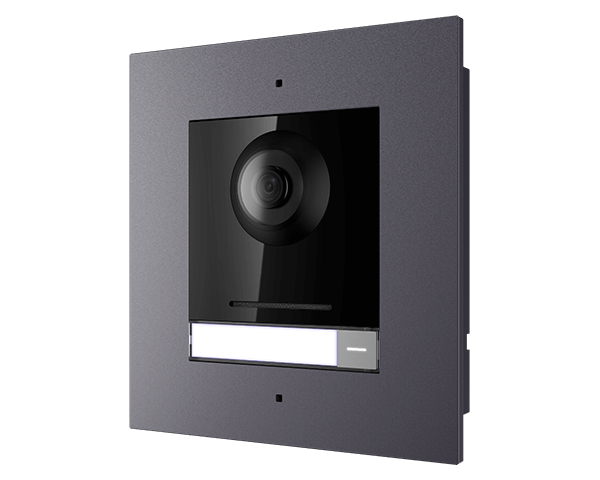

KD8 Series Pro Modular Door Station
- Modular door station for villa
- DS-KD8003 with its flush mouting accessories
- 2 MP HD video intercom function
- IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
- Supports sub-modules access
- Easy to and extend
KH8 Series Indoor Station
- Premium tempered glass
- Aerospace-grade aluminum
- New UI V2.0: User friendly design
- 8.6 mm Ultra-slim design
- 7-inch colorful touch screen with resolution 1024 × 600
